Available from Stainelec is the Cactus XP-3 universal flexible head puncher. This portable hydraulic hole puncher is powerful and capable of punching holes in 2mm stainless steel and 3.2mm mild steel sheetmetal.

Punch & die sets to suit the Cactus XP-3 are designed & manufactured to a high quality to provide strong resistance against wear, especially when working with high grade stainless steel material.

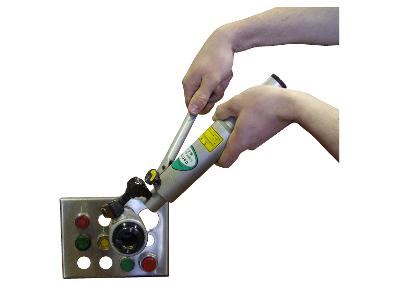

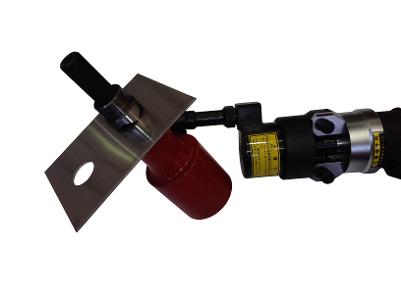

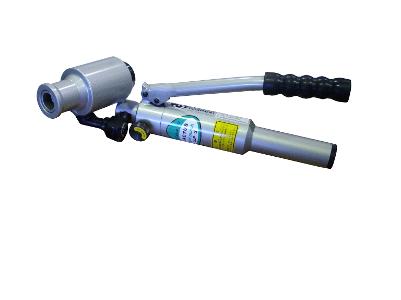

Cactus XP-3 Flexible Head Hole Puncher

Max. Punching Capacity: 2mm Stainless Steel

                                    3.2mm Mild Steel

Max. Punching Force: 5.5 Tons

Dimensions (Length): 410mm

Weight: 3Kgs


Cactus Electricians Kit:

1 XP-3 Flexible Hydraulic Puncher Body

7 Round Punch & Die Sets; 16.3, 20.2, 22.5, 25, 32.2, 40 & 50mm

2 Piston Shafts to Suit Punch & Die Sets

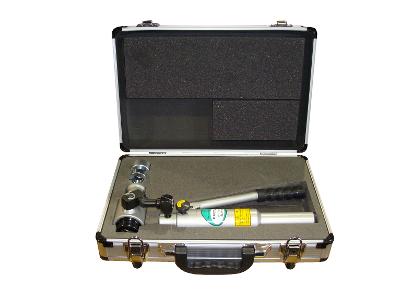

1 Heavy Duty Steel Carry Case


Key Features of the Cactus XP-3 Hydraulic Hole Punchers;

- Universal flexible head offers the operator more flexibility to punch holes in confined situations for control panel work

- Special purpose die sets are available to suit applications for multi point D-sub connectors and key locks

- XP-3 puncher unit can punch round, square and rectangular size holes

- Provides a clean hole to finished painted products

- Boasts a lightweight & portable design

- Designed & precision manufactured in Japan



Cactus XP-3 Hydraulic Hole Puncher Info.pdf Cactus XP-3 Hydraulic Hole Puncher Info.pdf
Size : 508.064 Kb
Type : pdf

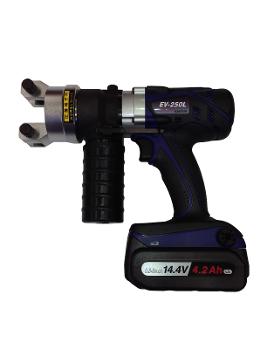

Cactus EVK-100 Cordless Hole Puncher

Max. Punching Force: 7.5 Ton

Max. Punching Cylinder Stroke: 25mm Punching Stroke

Max. Material Thickness: 3.2mm Mild Steel

                                    2.4mm Stainless Steel

                                    5mm Aluminium

Motor: Panasonic 14.4 Volt / 4.2Amp Hour Battery

Available Sizes (Punch & Die Sets): 15.2-115mm Round

                                                   50 x 50mm Square

Dimensions (L) x (W) x (H): 440 x 230 x 70mm

Weight: 7Kgs


The Cactus EVK-100 Cordless Hole Punch is designed to punch through 3.2mm mild steel, 2.4mm stainless steel & 5mm aluminium material in any working position for on-site or high production applications.

The EVK-100 punching head is powered by a reliable Panasonic 14.4V Li-Ion 4.2 amp hour battery & motor which requires minimal effort to operate and provides a professional finish with no burr to the work piece after every operation.

This unit has been supplied to the global construction & manufacturing markets and continues to be used by ship building, switchboard, plumbing, electrical, automotive and aviation industries around the world.



Cactus EVK-100 Cordles Hole Puncher.pdf Cactus EVK-100 Cordles Hole Puncher.pdf
Size : 865.782 Kb
Type : pdf
