Stainelec presents the Edilgrappa Concrete Crushing range, all designed & precision manufactured in Italy. These tools are used extensively by construction & demolition industries all over the globe.

The Edilgrappa concrete crushing range are designed to remove concrete structures without producing vibration and dust when in operation. In the construction industry these units are ideally used for demolishing concrete foundations, stairs, beams, chimneys and pre stressed concrete walls.

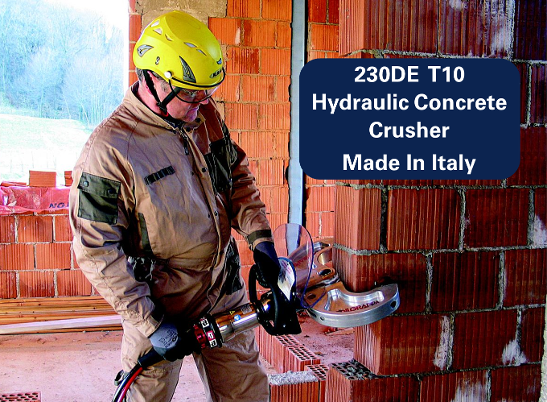

Edilgrappa 230DE T10 Hydraulic Concrete Crusher

Max. Hydraulic Pressure: 700 Bar

Max. Crushing Output: 20 Tons

Max. Jaw Opening: 230mm

Max. Crushing Power (Tips): 10 Tons

Weight: 23 Kgs

Dimension (L) x (W) x (H): 801 x 510 x 212mm



230 DE T10 Concrete Crusher.pdf 230 DE T10 Concrete Crusher.pdf
Size : 742.681 Kb
Type : pdf

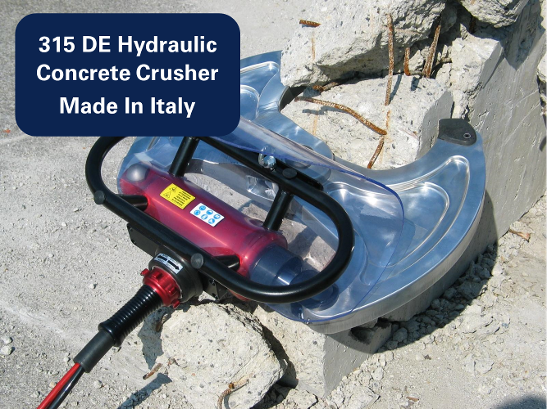

Edilgrappa 315 DE Hydraulic Concrete Crusher

Max. Hydraulic Pressure: 700 Bar

Max. Crushing Output: 30 Tons

Max. Jaw Opening: 300mm

Max. Crushing Power: 15 Tons

Weight: 52Kgs

Dimensions (L) x (W) x (H): 740 x 860 x 180mm



315 DE Concrete Crusher Info.pdf 315 DE Concrete Crusher Info.pdf
Size : 813.323 Kb
Type : pdf

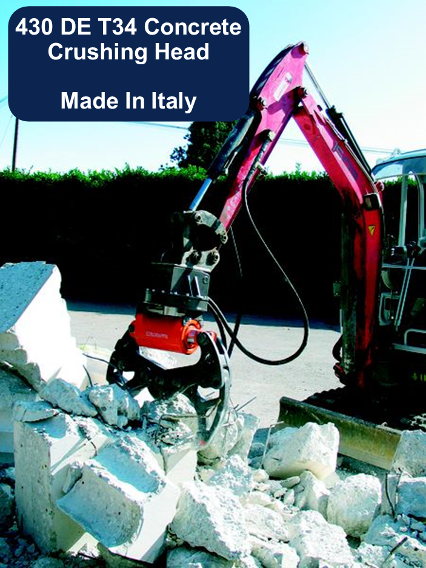

Edilgrappa 430DE T34 Hydraulic Concrete Crusher

Max. Crushing Output: 920kN

Max. Jaw Opening: 430mm

Max. Jaw Depth: 185mm

Rotation: 360 Degrees (Free Wheel)

Weight: 175Kgs

Dimensions (L) x (W) x (H): 748 x 728 x 322mm



430 DE T34 Concrete Crusher for Excavators.pdf 430 DE T34 Concrete Crusher for Excavators.pdf
Size : 725.463 Kb
Type : pdf

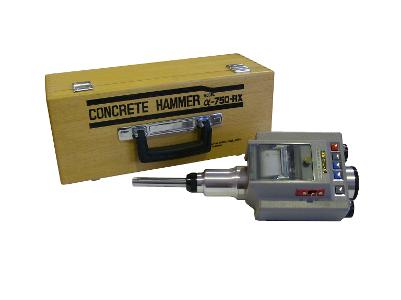

Kamekura 750-RX Concrete Testing Hammer

This concrete test hammer can estimate the strength of the entire concrete structure after measuring the rebound value by applying its plunger against any part of the structure.

It can also be used for determining the proper timing to remove moulds and for diagnosing the resistance of existing concrete buildings.

Specifications:

Impact Energy: 0.225mkg

Measuring Range: Cylinders - 100kg/cm - 600kg/cm

                                           (1,500psi  -  8,500psi)

                           Cubes - 100kg/cm - 700kg/cm

                                      (1,500psi   - 10,000psi)

Recording System: Thermal Printing System

Indication System: LCD Indication System

Weight: 1.9kgs

Dimensions (L) x (W) x (H): 130 x 126 x 353mm
