Precision hydraulic steel cutters, made in italy...

Stainelec Hydraulic Equipment supply and distribute Edilgrappa precision manufactured hydraulic cutting tools to the Australian and international construction market. We supply tools for cutting industrial cable, chain, rebar, bolts, container seals and pre stressed wire rope.

All Edilgrappa hydraulic tools are designed & manufactured in Italy to the of ISO9000 commercial standards for the Australian and international market. Stainelec Hydraulic Equipment are the Sole Australian agents for Edilgrappa products.

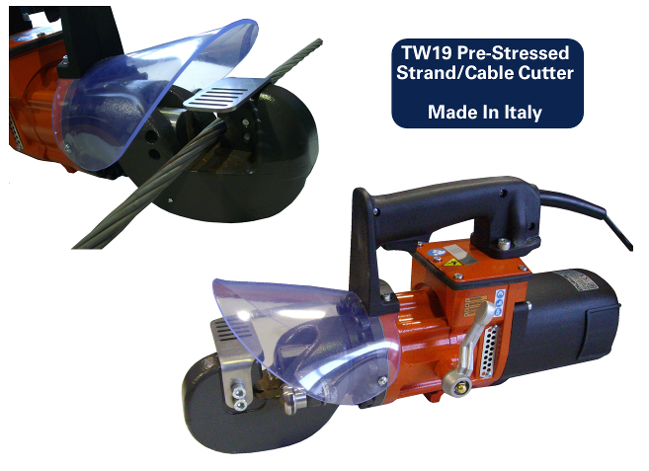

TW19 Electric Hydraulic Steel Strand Cutter

Features;

  • Max. Cutting Capacity: 16mm Diameter Steel Strand
  • Max. Hydraulic Pressure: 570 Bar
  • Max. Cutting Force: 25 Ton
  • Motor: 230Volt / 50Hz Electric Motor
  • Dimensions (L) x (W) x (H): 480 x 140 x 235mm
  • Designed to cut steel cable & wire strand material with ease.
  • Made In Italy

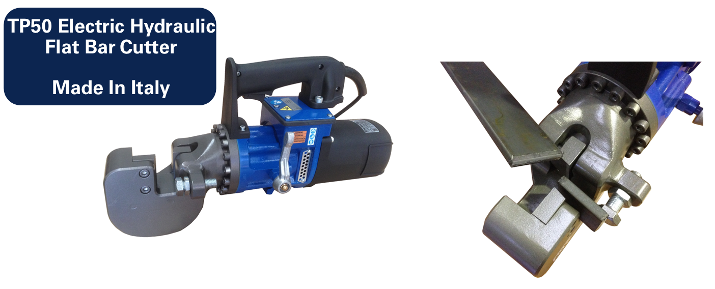

TP50 Electric Hydraulic Flat Bar Cutter

Features;

  • Max. Cutting Capacity: 16mm (150 Grade) Mild Steel
  • Max. Hydraulic Pressure: 570 Bar
  • Max. Cutting Force: 25 Ton
  • Motor: 230 Volt / 50Hz
  • Dimensions (L) x (W) x (H): 500 x 140 x 250mm
  • Weight: 22Kgs
  • Designed to cut flat bar material with ease.
  • Made In Italy
TP50 Flat Bar Cutter Info Sheet 2020.pdf TP50 Flat Bar Cutter Info Sheet 2020.pdf
Size : 281.457 Kb
Type : pdf

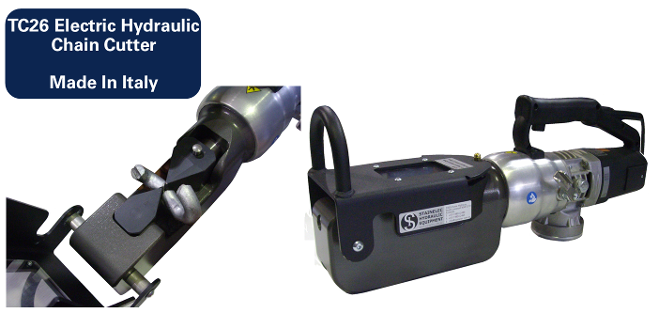

TC26 Electric Hydraulic Chain Cutter

Features;

  • Max. Cutting Capacity: 26mm Diameter Chain
  • Max. Hydraulic Pressure: 550 Bar
  • Max. Cutting Force: 31 Ton
  • Motor: 230Volt/50Hz Electric Motor
  • Dimensions (L) x (W) x (H): 610 x 240 x 165mm
  • Made In Italy
TC26 Chain Cutter Info Sheet 2020.pdf TC26 Chain Cutter Info Sheet 2020.pdf
Size : 822.226 Kb
Type : pdf

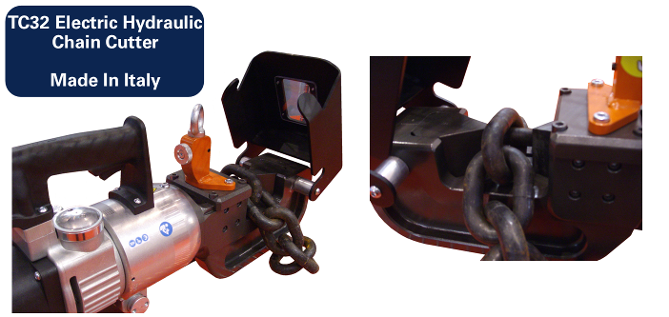

TC32 Electric Hydraulic Chain Cutter

Features;

  • Max. Cutting Capacity: 32mm Diameter Chain
  • Max. Hydraulic Pressure: 600 Bar
  • Max. Cutting Force: 47 Tons
  • Motor: 230 Volt - 50Hz (Also Available in 115 Volt - 60Hz)
  • Dimensions (L) x (W) x (H): 700 x 300 x 165mm
  • Made In Italy
TC32 Chain Cutter Info Sheet 2020.pdf TC32 Chain Cutter Info Sheet 2020.pdf
Size : 741.113 Kb
Type : pdf

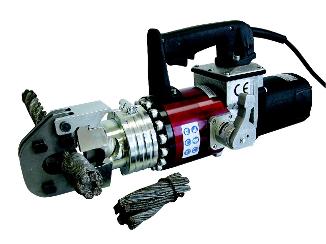

TF32 Electric Hydraulic Wire Rope/Cable Cutter

Features;

  • Max. Cutting Capacity: 32mm Diameter Material
  • Max. Hydraulic Pressure: 640 Bar
  • Max. Cutting Force: 32 Ton
  • Motor: 230Volt/50Hz Electric Motor
  • Weight: 19.4kgs
  • Dimensions (L) x (W) x (H): 450 x 240 x 190mm
  • Made In Italy
TF32 Wire Rope Cutter.pdf TF32 Wire Rope Cutter.pdf
Size : 552.367 Kb
Type : pdf

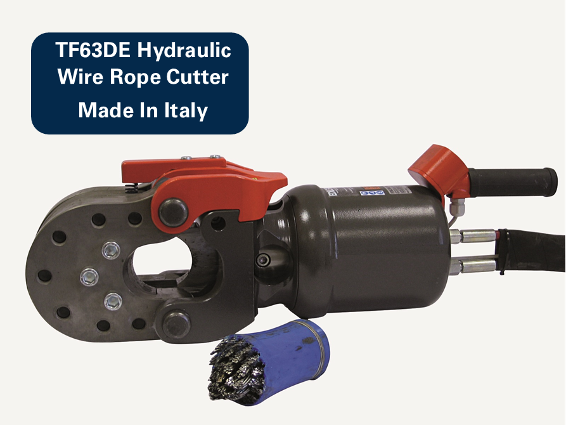

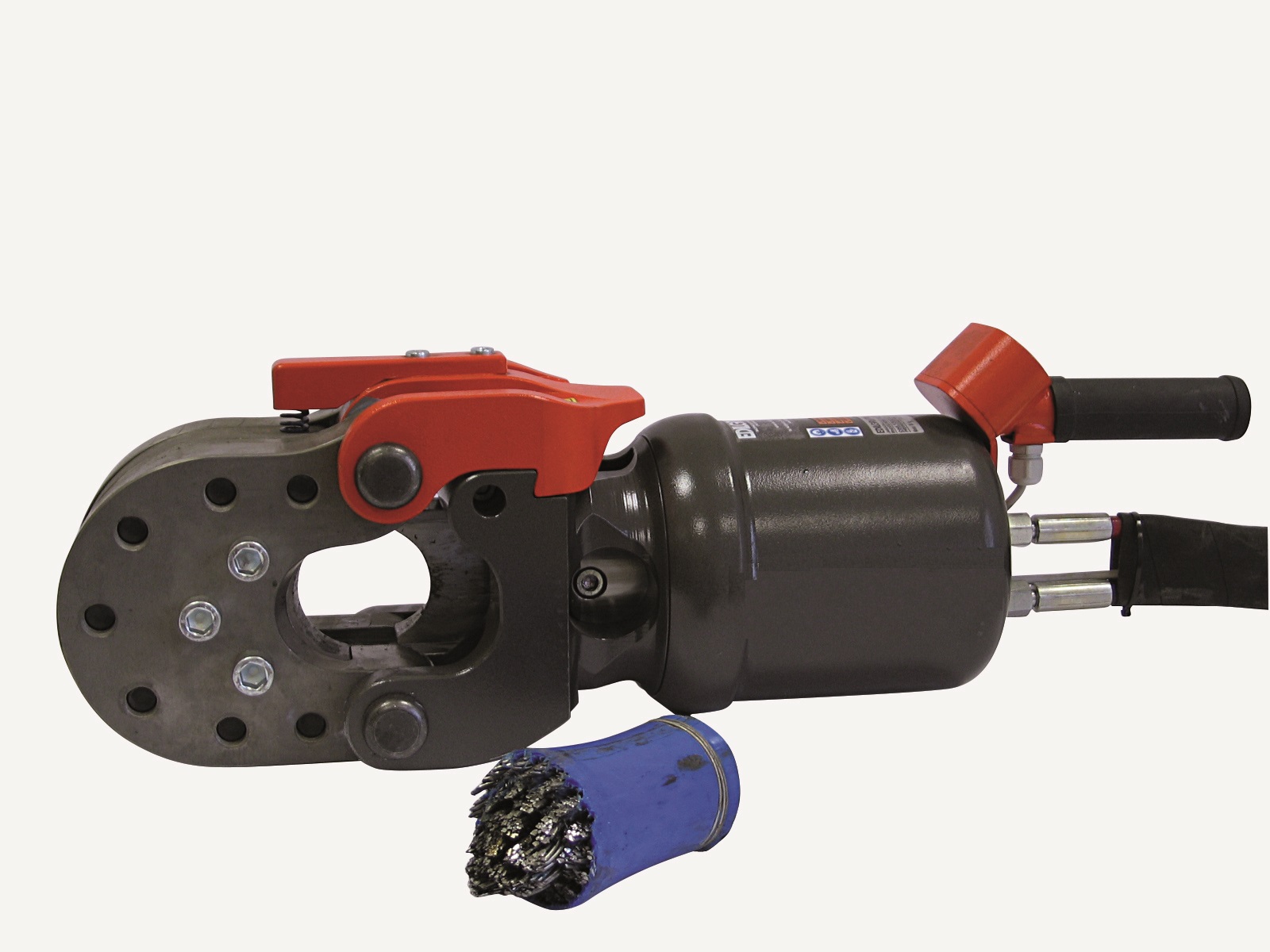

TF63 DE Hydraulic Wire Rope/Cable Cutter

Features;

  • Max. Cutting Capacity: 63mm Diameter Material
  • Max. Hydraulic Pressure: 700 Bar
  • Max. Cutting Force: 87 Ton
  • Weight: 67kgs
  • Dimensions (L) x (W) x (H): 670 x 240 x 176mm
  • Made In Italy
TF63DE Wire Rope Cutter Info Sheet 2022.pdf TF63DE Wire Rope Cutter Info Sheet 2022.pdf
Size : 203.364 Kb
Type : pdf

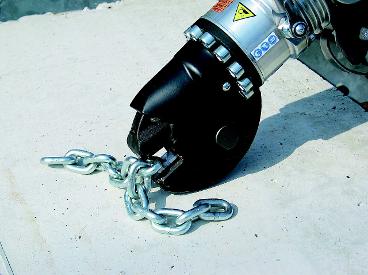

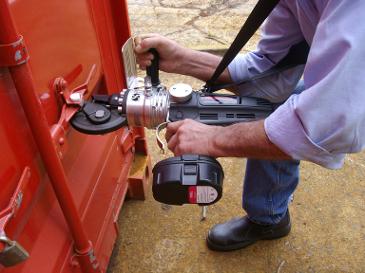

MU16 Cordless Hydraulic Cutter

Features;

  • Ideally used for cutting chain, rebar, steel wire, locks & container seals
  • Max. Cutting Capacity: 16mm Diameter Material
  • Max. Hydraulic Pressure: 560 Bar
  • Max. Cutting Force: 14 Ton
  • Motor: 18 Volt Li-Ion DeWalt Battery & Motor
  • Weight: 8.6kgs
  • Dimensions (L) x (W) x (H): 490 x 395 x 135mm
  • Made In Italy
Edilgrappa MU16 Cordless Cutter.pdf Edilgrappa MU16 Cordless Cutter.pdf
Size : 510.318 Kb
Type : pdf

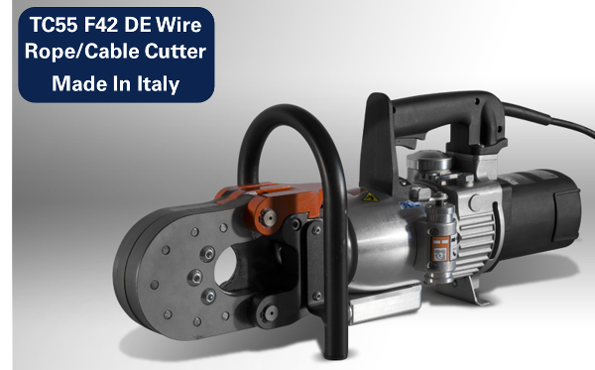

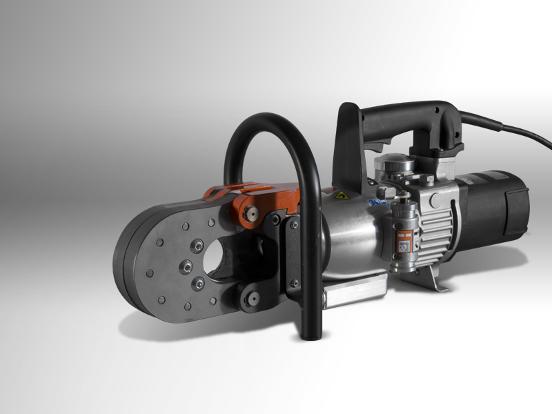

TC55 F42 DE Electric Hydraulic Wire Rope/Cable Cutter

Features;

  • Max. Cutting Capacity: 55mm Material
  • Voltage/Motor: 230Volt/50-60Hz
  • Max. Cutting Force: 34.7 Tons / 340kN
  • Dimensions L x W x H: 627 x 183 x 264mm
  • Weight: 26kgs
  • Made In Italy
TC55 F42 DE Info Sheet 2020.pdf TC55 F42 DE Info Sheet 2020.pdf
Size : 224.312 Kb
Type : pdf

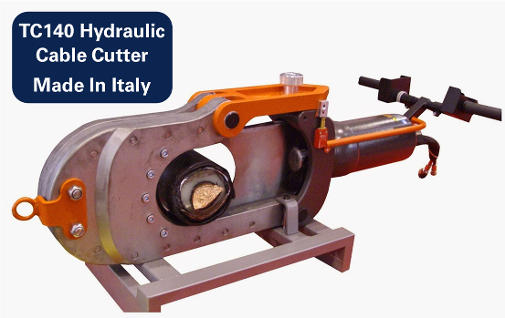

TC140 Hydraulic Cable Cutting Cylinder

Features;

  • Max. Cutting Capacity: 140mm Diameter Cable
  • Max. Hydraulic Pressure: 700 Bar
  • Max. Cutting Force: 55 Tons
  • Weight: 90kgs
  • Dimensions (L) x (W) x (H): 925 x 300 x 210mm
  • Designed to cut 140mm dia. cable with ease. Ideally used in factory based operations with a spring balancing system.
  • Made In Italy to the highest of ISO9000 commercial standards.

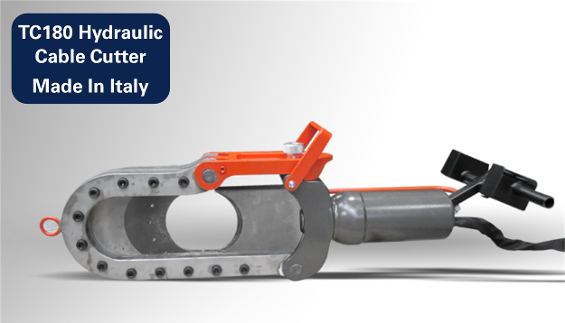

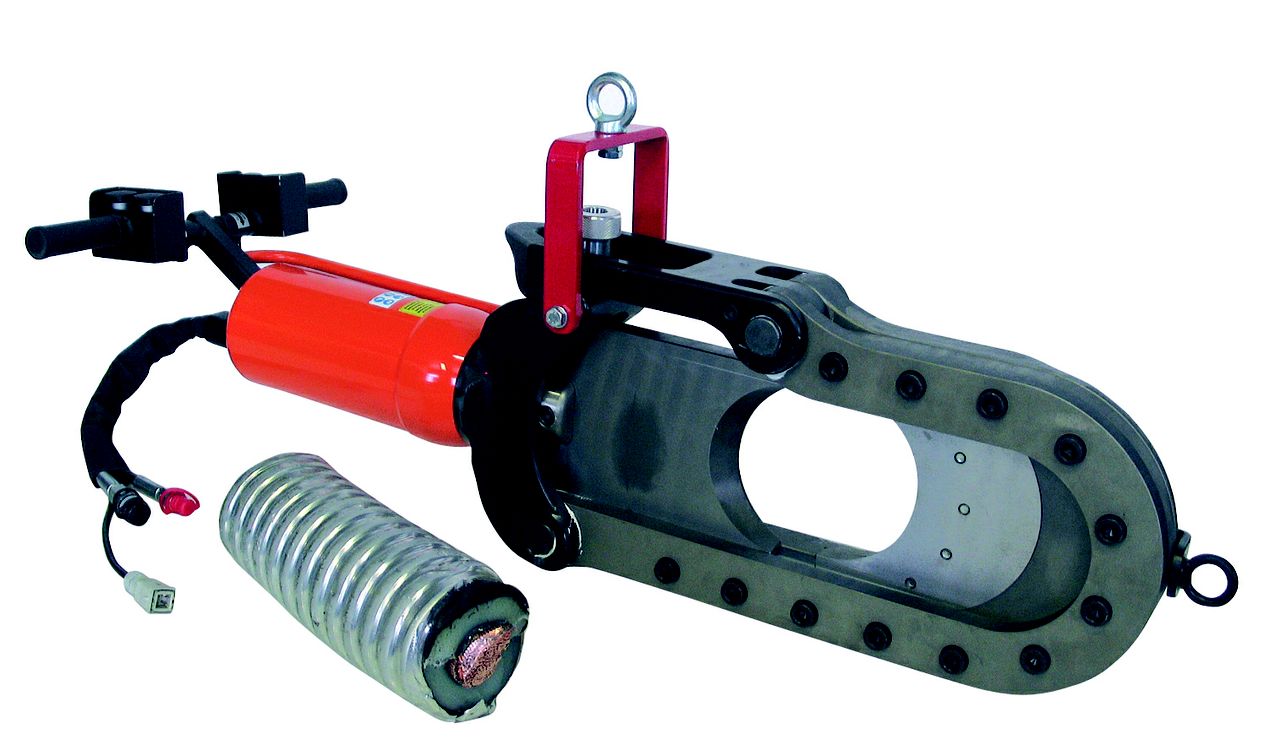

TC180 Hydraulic Cable Cutting Cylinder

Features;

  • Max. Cutting Capacity: 180mm Diameter Cable
  • Max. Cutting Force: 80 Tons
  • Weight: 160kgs
  • Dimensions (L) x (W) x (H): 1364 x 550 x 400mm
  • Designed to cut 180mm insulated cable with ease. Ideally used in factory based production operations with a workbench or spring balancing system in place.
  • Made In Italy to the highest of ISO9000 commercial standards
TC180 Cable Cutter Info Sheet 2020.pdf TC180 Cable Cutter Info Sheet 2020.pdf
Size : 215.5 Kb
Type : pdf

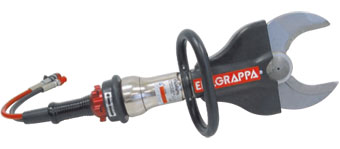

F130N Hydraulic Shear Cutter

Features;

  • Max. Blade Opening: 130mm Diameter
  • Max. Hydraulic Pressure: 700 Bar
  • Max. Cutting Force: 24.5 Ton
  • Weight: 11.8kgs
  • Dimensions (L) x (W) x (H): 670 x 235 x 150mm
  • Made In Italy
F130N Hydraulic Hose Rescue Cutter.pdf F130N Hydraulic Hose Rescue Cutter.pdf
Size : 614.645 Kb
Type : pdf

F145N Hydraulic Shear Cutter

Features;

  • Max. Blade Opening: 145mm Diameter
  • Max. Hydraulic Pressure: 700 Bar
  • Max. Cutting Force: 30 Ton
  • Weight: 18kgs
  • Dimensions (L) x (W) x (H): 780 x 255 x 160mm
  • Made In Italy

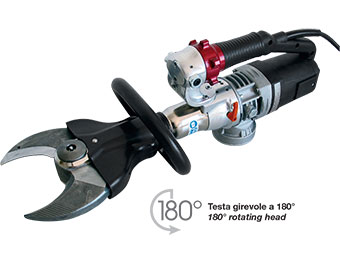

F130N Electric Hydraulic Shear Cutter

Features;

  • Max. Blade Opening: 130mm
  • Max. Hydraulic Pressure: 600 Bar
  • Max. Cutting Force: 19 Ton
  • Motor: 230Volt/50Hz Electric Motor
  • Weight: 15.4kgs
  • Dimensions (L) x (W) x (H): 650 x 240 x 250mm
  • Made In Italy

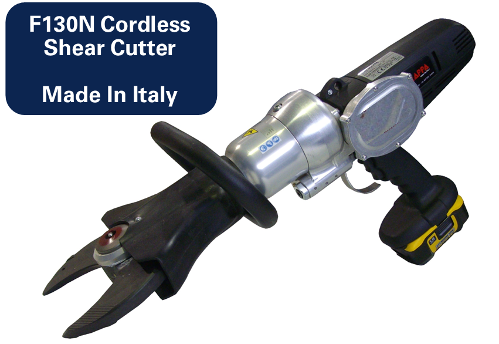

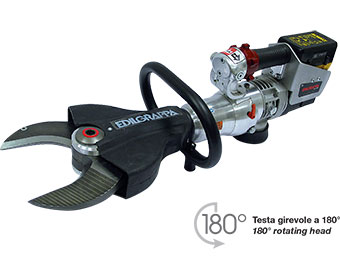

F130N Cordless 18V Hydraulic Shear Cutter

Features;

  • Max. Blade Opening: 130mm
  • Max. Hydraulic Pressure: 550 Bar
  • Max. Cutting Force: 33 Ton
  • Motor: DeWalt 18 Volt Li-Ion Battery & Motor
  • Weight: 12.5kgs
  • Dimensions (L) x (W) x (H): 690 x 240 x 360mm
  • Made In Italy

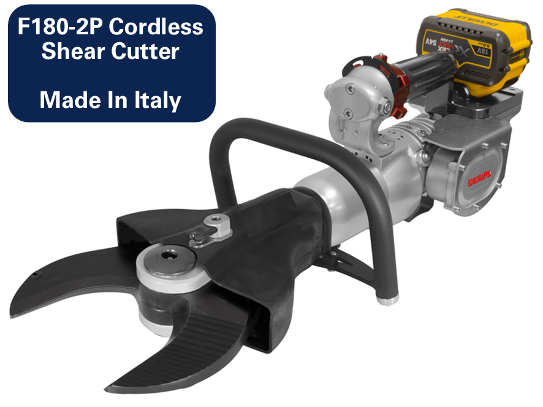

F180-2P Cordless 54V Hydraulic Shear Cutter

Features;

  • Max. Blade Opening: 185mm
  • Max. Hydraulic Pressure: 700 Bar
  • Max. Cutting Force: 30.4 Ton
  • Motor: DeWalt 54 Volt Li-Ion Battery & Motor
  • Weight: 22.5Kgs
  • Dimensions (L) x (W) x (H): 817 x 280 x 283mm
  • Made In Italy

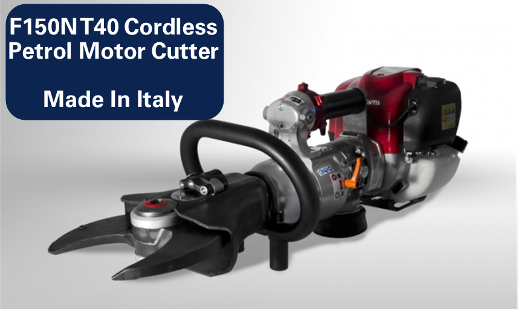

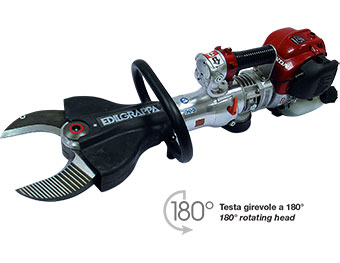

F150N T40 S Petrol Motor Hydraulic Shear Cutter

Features;

  • Max. Blade Opening: 150mm
  • Max. Hydraulic Pressure: 700 Bar
  • Max. Cutting Force: 40.2 Tons
  • Motor: 2- Stroke Honda Petrol Motor
  • Weight: 22.5Kgs
  • Dimensions (L) x (W) x (H): 840 x 258 x 261mm
  • Made In Italy

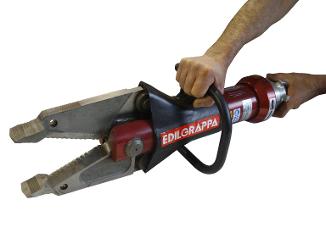

MDC360 T40 Hydraulic Cutter & Spreader

Features;

  • Max. Blade Opening: 360mm
  • Max. Hydraulic Pressure: 700 Bar
  • Max. Cutting Force: 40 Ton
  • Weight: 17kgs
  • Dimensions (L) x (W) x (H): 706 x 360 x 184mm
  • Made In Italy

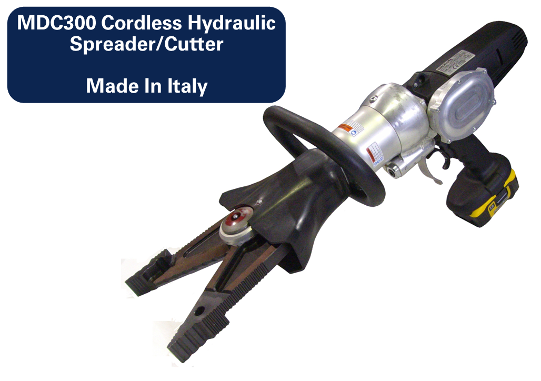

MDC300 Cordless 18V Cutter & Spreader

Features;

  • Max. Blade Opening: 300mm
  • Max. Hydraulic Pressure: 550 Bar
  • Max. Cutting Force: 33.7 Ton
  • Max. Squeezing Force (Tip): 6.5 Ton
  • Max. Spreading Force: 4.6 Ton
  • Motor: DeWalt 18Volt Li-Ion Battery & Motor
  • Weight: 12.5kgs
  • Dimensions (L) x (W) x (H): 690 x 240 x 360mm
  • Made In Italy
MDC300 Spreader Cutter Info Sheet 2020.pdf MDC300 Spreader Cutter Info Sheet 2020.pdf
Size : 312.218 Kb
Type : pdf

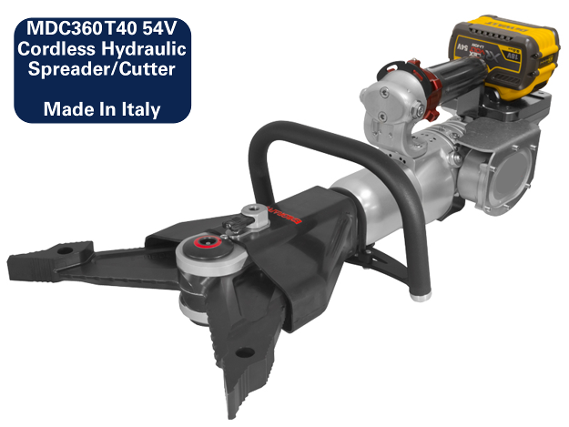

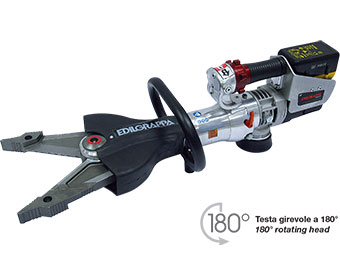

MDC360 T40 54V Cordless Cutter & Spreader

Features;

  • Max. Blade Opening: 360mm
  • Max. Hydraulic Pressure: 700 Bar
  • Max. Cutting Force: 40.2 Ton
  • Max. Squeezing Force (Tip): 7.3 Ton
  • Max. Spreading Force: 16.9 Ton
  • Motor: DeWalt 54V Brushless Battery & Motor
  • Weight: 22.2kgs
  • Dimensions (L) x (W) x (H): 845 x 271 x 244 mm
  • Made In Italy

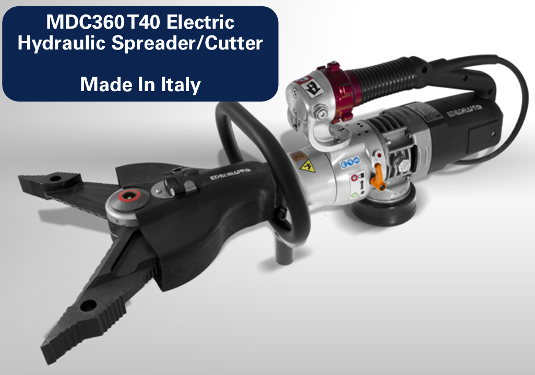

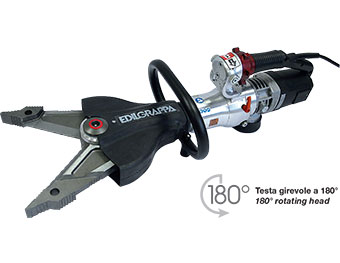

MDC360 T40 Electric Hydraulic Cutter & Spreader

Features;

  • Max. Blade Opening: 360mm
  • Max. Hydraulic Pressure: 700 Bar
  • Max. Cutting Force: 40.2 Ton
  • Max. Squeezing Force (Tip): 7.3 Ton
  • Max. Spreading Force: 16.9 Ton
  • Motor: 230Volt/50Hz - 1100W Electric Motor
  • Weight: 20kgs
  • Dimensions (L) x (W) x (H): 846 x 273 x 261mm
  • Made In Italy

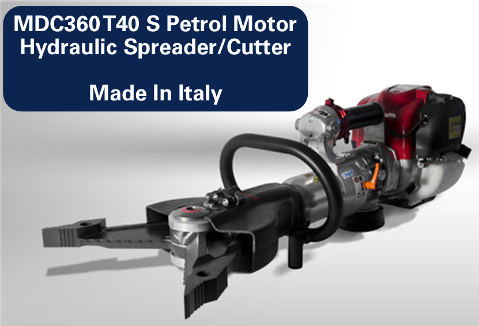

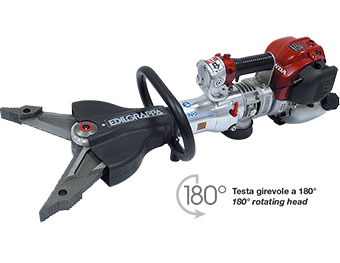

MDC360 T40 S Petrol Motor Cutter & Spreader

Features;

  • Max. Blade Opening: 360mm
  • Max. Hydraulic Pressure: 700 Bar
  • Max. Cutting Force: 40.2 Ton
  • Motor: 2-Stroke Honda Petrol Motor
  • Weight: 22kgs
  • Dimensions (L) x (W) x (H): 923 x 273 x 262mm
  • Made In Italy

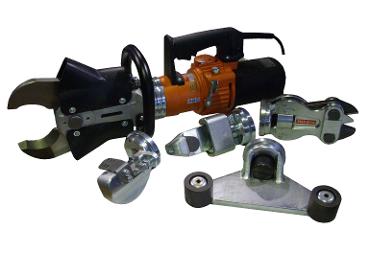

MU22N Interchangeable Head Series

MU22N Electric Hydraulic Body

Features;

  • Max. Hydraulic Pressure: 570 Bar
  • Motor: 230Volt/50Hz Electric Motor
  • Weight: 13.7kgs (Body)
  • Dimensions (L) x (W) x (H): 385 x 240 x 180mm
  • Made In Italy

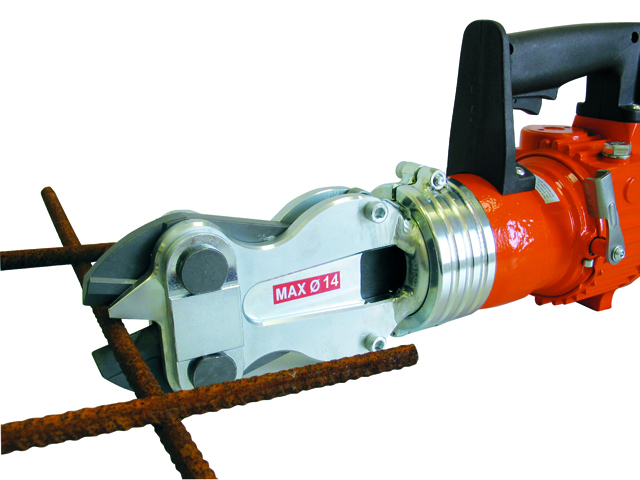

T14 Cutting Head

Features;

  • Max. Cutting Capacity: 14mm Diameter
  • Max. Blade Depth: 38mm Deep
  • Weight: 4.9kgs (Head)
  • Dimensions (L) x (W) x (H): 230 x 110 x 110mm
  • Ideally used for cutting steel wire & mesh rebar material.

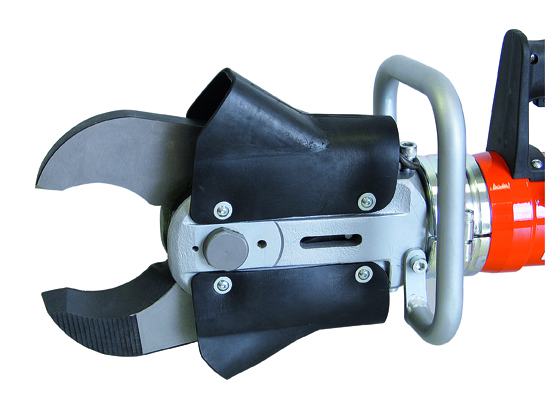

F100 Cutting Head

Features;

  • Max. Blade Opening from the Tip: 80mm
  • Max. Blade Opening from the centre: 95mm
  • Max. Blade Depth: 100mm
  • Weight: 11.4kgs (Head)
  • Dimensions (L) x (W) x (H): 322 x 180 x 230mm
  • Ideally used for cutting electrical cable with ease.

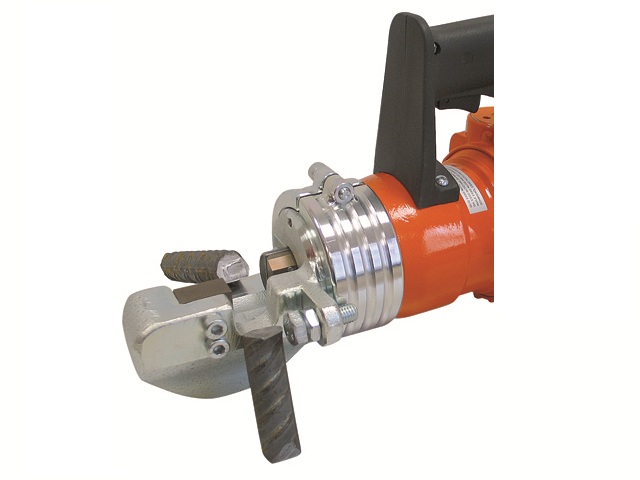

T22 Rebar Cutting Head

Features;

  • Max. Cutting Capacity: 22mm Diameter
  • Weight: 3.4kgs (Head)
  • Dimensions (L) x (W) x (H): 135 x 112 x 118mm
  • Designed to cut through 22mm diameter mild steel rebar.

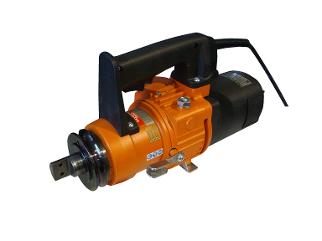

MU22N Electric Body

T14 Cutting Head

F100 Cutting Head

T22 Rebar Cutting Head

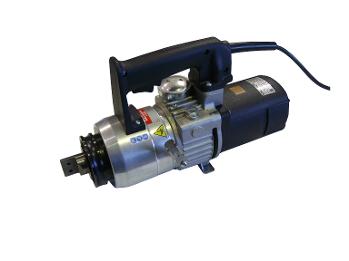

MU26N Electric Hydraulic Body

Features;

  • Max. Hydraulic Pressure: 570 Bar
  • Motor: 230Volt/50Hz Electric Motor
  • Dimensions (L) x (W) x (H): 405 x 250 x 170mm
  • Heads available for the MU26N: T14 Cutting Head, F100 Cutting Head & T26 Rebar Cutting Head
  • Made In Italy


TPS 22N Petrol Motor Body

Features;

  • Motor: 2-Stroke Honda Petrol Motor
  • Weight: 15kgs
  • Dimensions (L) x (W) x (H): 440 x 285 x 265mm
  • Heads available for the TPS 22N: T14 Cutting Head, F100 Cutting Head & T22 Rebar Cutting Head
  • Made In Italy

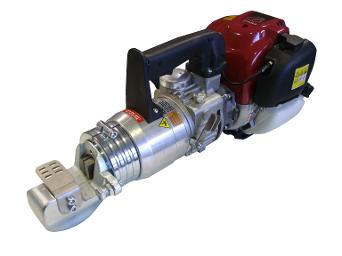

TPS 26N Petrol Motor Body

Features;

  • Max. Hydraulic Pressure: 580 Bar
  • Motor: 2-Stroke Honda Petrol Motor
  • Weight: 15.2kgs
  • Dimensions (L) x (W) x (H): 460 x 285 x 265mm
  • Heads Available for the TPS 26N: T14 Cutting Head, F100 Cutting Head & T26 Rebar Cutting Head
  • Made In Italy
