Italian designed & made rebar benders for the modern worksite...

Edilgrappa adopts flexibility and innovation as a priority for every project they are focused on. For the toughest jobs in the worst environmental conditions you can depend on Edilgrappas range of cordless, petro & electric hydraulic rebar benders.

Since 1976 Edilgrappa has been developing and manufacturing high quality hydraulic bending equipment for the construction, concreting & mining industries. Stainelec Hydraulic Equipment are the Australian Agents for Edilgrappa.

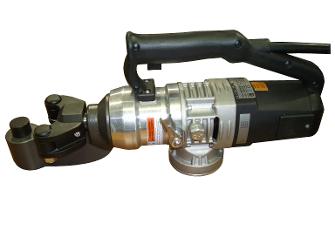

MU16P Electric Hydraulic Rebar Bender

Features;

  • Max. Bending Capacity: 16mm Diameter
  • Max. Bending Angle: 90 Degrees
  • Max. Hydraulic Pressure: 380 Bar
  • Max. Bending Force: 10 Ton
  • Motor: 230 Volt / 50Hz Double Insulated Motor
  • Weight: 12kgs
  • Dimensions (L) x (W) x (H): 500 x 120 x 230mm
  • Made In Italy
Edilgrappa MU16P Rebar Bender.pdf Edilgrappa MU16P Rebar Bender.pdf
Size : 702.875 Kb
Type : pdf

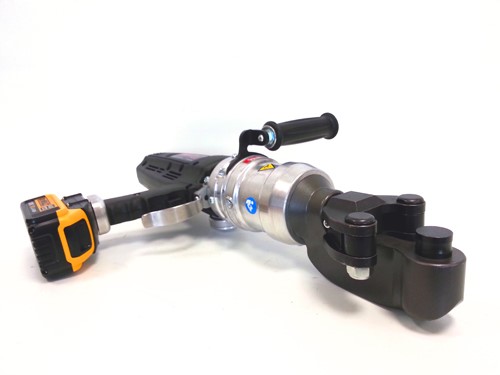

MU16P Cordless Hydraulic Rebar Bender

Features;

  • Max. Bending Capacity: 16mm Diameter
  • Max. Bending Angle: 90 Degrees
  • Max. Hydraulic Pressure: 400 Bar
  • Max. Bending Force: 10.5 Ton
  • Weight: 10.7Kgs
  • Dimensions (L) x (W) x (H): 560 x 125 x 370mm
  • Made In Italy
Edilgrappa MU16P Cordless Rebar Bender.pdf Edilgrappa MU16P Cordless Rebar Bender.pdf
Size : 666.501 Kb
Type : pdf

PR32 Electric Hydraulic Rebar Bender

Features;

  • Max. Bending Capacity: 32mm Diameter
  • Max. Bending Angle: 90 Degrees
  • Max. Hydraulic Pressure: 550 Bar
  • Max. Bending Force: 15.5 Ton
  • Motor: 230 Volt Electric Motor
  • Weight:24.4kgs
  • Dimensions (L) x (W) x (H): 601 x 294 x 229mm
  • 180 Degree Rotatable Bending Head
  • Made In Italy
Edilgrappa PR32 Rebar Bender.pdf Edilgrappa PR32 Rebar Bender.pdf
Size : 663.013 Kb
Type : pdf

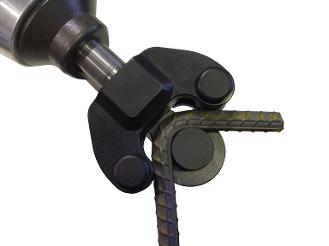

PR16-32 Electric Hydraulic Rebar Bender with Radius Bending Head

Features;

  • Max. Bending Capacity: 16mm - 32mm Diameter
  • Bending Head Sizes Available: 16, 20, 25, 28 & 32mm
  • Max. Bending Radius: 90 Degrees
  • Max. Hydraulic Pressure: 550 Bar
  • Max. Bending Force: 15.5 Ton
  • Motor: 230 V Electric Motor (Also Available in 120V/60Hz)
  • Weight: 22Kgs
  • Dimensions (L) x (W) x (H): 570 x 270 x 225mm
  • Made In Italy
PR16-32 Rebar Bender Info Sheet 2020.pdf PR16-32 Rebar Bender Info Sheet 2020.pdf
Size : 386.151 Kb
Type : pdf

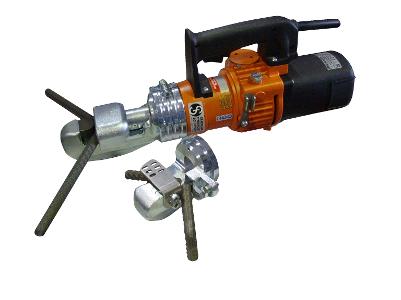

P22 Bending Head/MU22N Electric Body

(Features an Interchangeable Head System)

Specifications;

  • Max. Bending Capacity: 22mm Diameter
  • Max. Bending Angle: 90 Degrees
  • Max. Hydraulic Pressure: 570 Bar
  • Motor: 230 Volt Electric Motor
  • Weight: 5.3kgs (Head), 11.5 (Body)
  • Dimensions (L) x (W) x (H): 193 x 90 x 110mm
  • Made In Italy

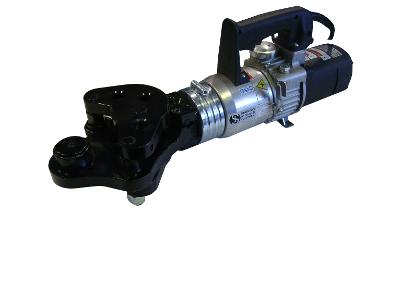

P26 Bending Head/MU26N Electric Body

(Features an Interchangeable Head System)

Specifications;

  • Max. Bending Capacity: 26mm Diameter
  • Max. Bending Angle: 90 Degrees
  • Max. Hydraulic Pressure: 570 Bar
  • Motor: 230 Volt Electric Motor
  • Weight: 7.6kgs (Head), 13.3kgs (Body)
  • Dimensions (L) x (W) x (H): 225 x 135 x 135mm
  • Made In Italy
Edilgrappa P26 - MU26N Bender Body.pdf Edilgrappa P26 - MU26N Bender Body.pdf
Size : 864.789 Kb
Type : pdf

P22 Bending Head/TPS 22N Petrol Body

(Features an Interchangeable Head System)

Specifications;

  • Max. Bending Capacity: 22mm Diameter
  • Max. Bending Angle: 90 Degrees
  • Max. Hydraulic Pressure: 570 Bar
  • Motor: 2-Stroke Honda Petrol Motor
  • Weight: 5.3kgs (Heads), 15kgs (Petrol Body)
  • Dimensions (L) x (W) x (H): 440 x 285 x 265mm
  • Made In Italy

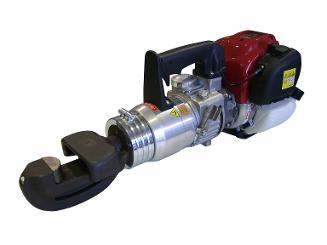

P26 Bending Head/TPS 26N Petrol Body

(Features an Interchangeable Head System)

Specifications;

  • Max. Bending Capacity: 26mm Diameter
  • Max. Bending Angle: 90 Degrees
  • Max. Hydraulic Pressure: 570 Bar
  • Motor: 2-Stroke Honda Petrol Motor
  • Weight: 7.6kgs (Heads), 15.2kgs (Petrol Body)
  • Dimensions (L) x (W) x (H): 460 x 285 x 265mm
  • Made In Italy

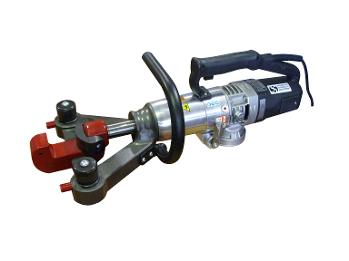

TPR26 Radius Bending Head/MU26N Body

(Features an Interchangeable Head System)

Specifications;

  • Max. Bending Capacity: 26mm Diameter
  • Max. Hydraulic Pressure: 570 Bar
  • Motor: 230 Volt / 50Hz Electric Motor
  • Weight: 15.2kgs (Head), 13.3kgs (Body)
  • Dimensions (L) x (W) x (H): 220 x 290 x 130mm
  • Made In Italy

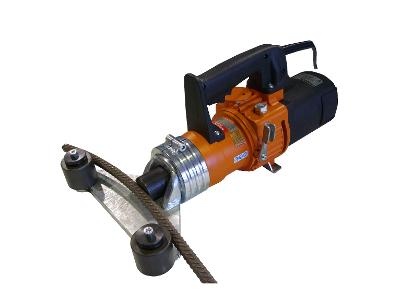

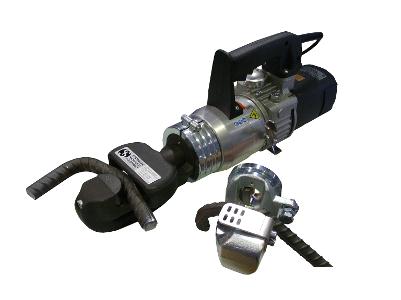

TR40 Straightening Head/MU22N Body

(Features an Interchangeable Head System)

Specifications;

  • Max. Straightening Capacity: 30mm Diameter
  • Max. Hydraulic Pressure:
  • Motor: 230 Volt / 50Hz Electric Motor
  • Weight: 4.5kgs (Head), 11.5kgs (Body)
  • Dimensions (L) x (W) x (H): 270 x 150 x 90mm
  • Made In Italy
Edilgrappa TR40 - MU22N Bar Straightener.pdf Edilgrappa TR40 - MU22N Bar Straightener.pdf
Size : 818.029 Kb
Type : pdf

Other Interchangeable Heads are Available per Customers Request

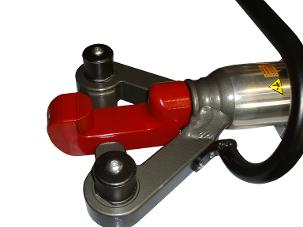

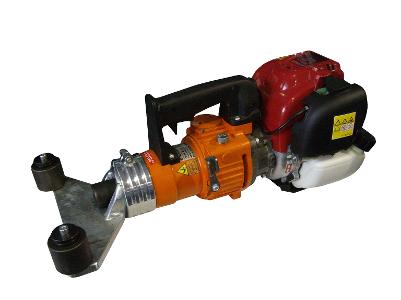

TR40 Straightening Head/TPS22N Petrol Body

Features;

  • Max. Straightening Capacity: 30mm Diameter
  • Max. Hydraulic Pressure:
  • Motor: 2-Stroke Honda Petrol Motor
  • Weight: 4.5kgs (Head), 15kgs (Petrol Body)
  • Made In Italy

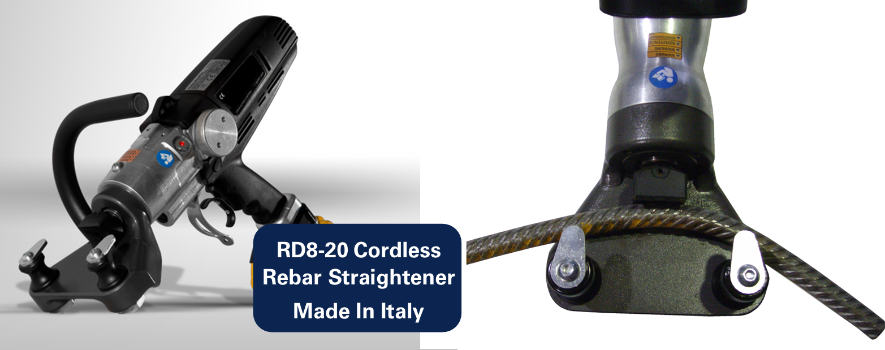

RD8-20 Cordless Rebar Straightener

Features;

  • Max. Straightening Capacity: 20mm Diameter
  • Max. Hydraulic Pressure: 200 Bar
  • Max. Straightening Force: 8 Ton
  • Motor: 18V DeWalt Battery & Motor
  • Weight: 8kgs
  • Made In Italy

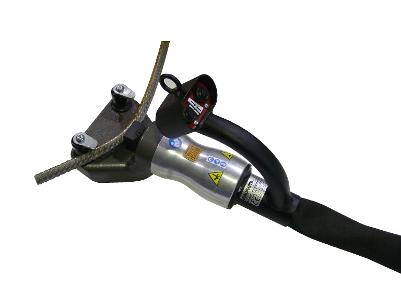

RD8-20 Hydraulic Rebar Straightener

Features;

  • Max. Straightening Capacity: 20mm Diameter
  • Max. Hydraulic Pressure: 380 Bar
  • Max. Straightening Force: 5 Ton
  • Weight: 9.4kgs
  • Ideally used with Edilgrappa's hydraulic pump range.
  • Made In Italy
