PORTABLE HEAVY DUTY BEAM PUNCHERS...

Available from Stainelec are the CH-60 & CH-70 heavy duty hydraulic beam punchers. These portable hydraulic beam punchers are powerful and capable of punching holes in copper, mild steel, stainless steel and aluminium plate with ease.

These units are designed & manufactured to a high quality to provide strong resistance against wear, especially when working with high grade stainless steel thick plate.



Stainelec CH-60 Hydraulic Beam Puncher

Specifications;

  • Punching Force: 31 Ton
  • Depth of Throat: 95mm
  • Height: 390mm
  • Weight: 16.9Kgs
  • Designed to punch through copper, mild steel, stainless steel and aluminium plate & angle with ease.

Stainelec CH-70 Hydraulic Beam Puncher

Specifications;

  • Punching Force: 35 Ton
  • Depth of Throat: 110mm
  • Height: 350mm
  • Weight: 28kgs
  • Designed to punch through copper, mild steel, stainless steel and aluminium plate & angle with ease.

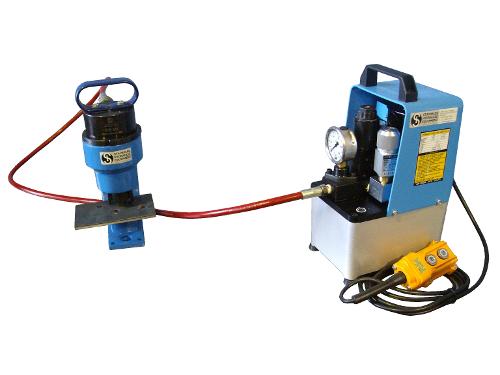

CH-60 beam puncher powered by the Osaka Jack NEX-2EGS hydraulic power pack as pictured above
