Stainelec Hydraulic Equipment presents the Edilgrappa line of precision made cordless & electric punchers that can be applied to any working position in any given environment on a wide range of materials.

Manufactured in Italy from quality hardened tool steel to ISO9000 standards, these portable hydraulic punching machines allow operators flexibility to punch holes in confined situations in a wide range of applications and environments.

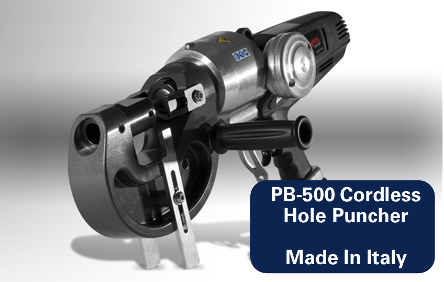

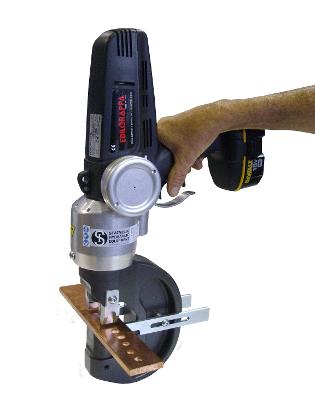

Edilgrappa PB-500 Cordless Hole Puncher

Max. Punching Capacity: 12mm

Max. Hole Size: 30mm Diameter

Max. Hydraulic Pressure: 550 Bar

Max. Punching Force: 21 Ton

Motor: DeWalt 18Volt Li-Ion Battery & Motor

Weight: 14.7kgs


PB500 Portable Hydraulic Hole Puncher Info.pdf PB500 Portable Hydraulic Hole Puncher Info.pdf
Size : 1615.163 Kb
Type : pdf

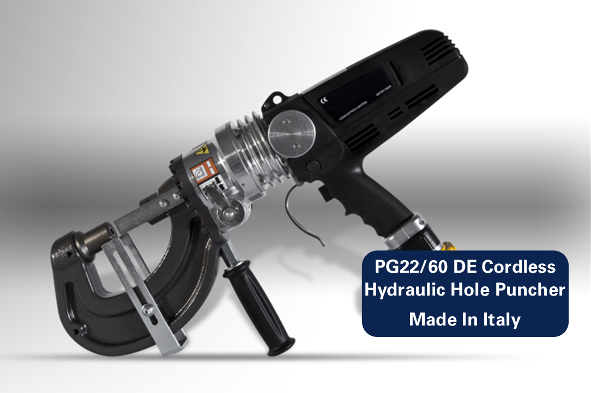

Edilgrappa PG22/60DE Cordless Hole Puncher

Max. Punching Capacity: 6mm

Max. Hole Size: 22mm Diameter

Max. Hydraulic Pressure: 550 Bar

Max. Punching Force: 12 Ton

Motor: DeWalt 18Volt Li-Ion Battery & Motor

Weight: 14.2kgs


Edilgrappa PG22 60DE Cordless Hole Puncher.pdf Edilgrappa PG22 60DE Cordless Hole Puncher.pdf
Size : 418.447 Kb
Type : pdf

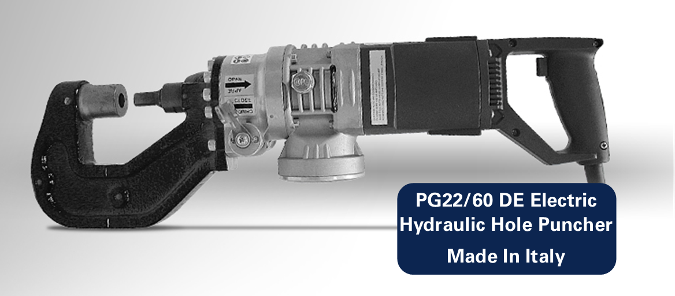

Edilgrappa PG22/60DE Electric Hole Puncher

Max. Punching Capacity: 6mm

Max. Hole Size: 22mm Diameter

Max. Hydraulic Pressure: 700 Bar

Max. Punching Force: 15 Ton

Motor: 230Volt/50Hz Electric Motor

Weight: 11.8kgs


Edilgrappa PG22 60DE Electric Hole Puncher.pdf Edilgrappa PG22 60DE Electric Hole Puncher.pdf
Size : 385.027 Kb
Type : pdf

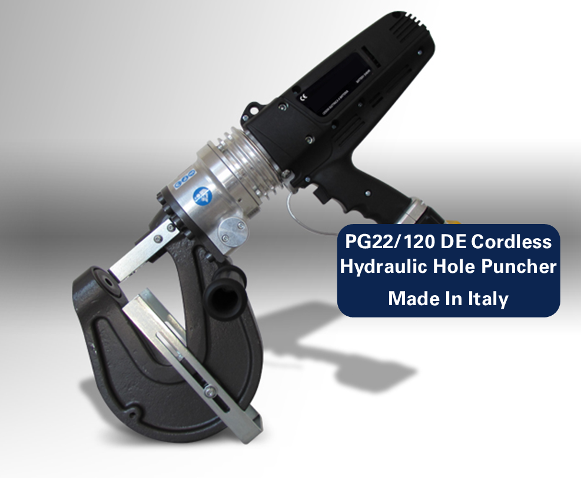

Edilgrappa PG22/120DE Cordless Hole Puncher

Max. Punching Capacity: 6mm

Max. Hole Size: 22mm Diameter

Max. Hydraulic Pressure: 550 Bar

Max. Punching Force: 12 Ton

Motor: DeWalt 18Volt Li-Ion Battery & Motor

Weight: 14.7kgs


PG22 - 120 DE Cordless Hole Puncher.pdf PG22 - 120 DE Cordless Hole Puncher.pdf
Size : 498.192 Kb
Type : pdf

Edilgrappa PG22/120DE Electric Hole Puncher

Max. Punching Capacity: 6mm

Max. Hole Size: 30mm Diameter

Max. Hydraulic Pressure: 700 Bar

Max. Punching Force: 15 Ton

Motor: 230Volt/50Hz Electric Motor

Weight: 14kgs

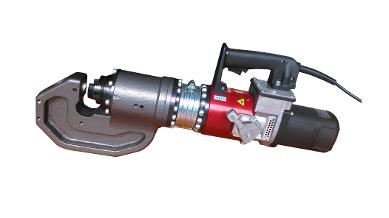

Edilgrappa PZ 28/65DE Electric Hydraulic Hole Puncher with Interchangeable Motor Body & Head

Max. Punching Capacity: 16mm (250 Grade Material)

Max. Hole Size: 22mm Diameter

Max. Hydraulic Pressure: 640 Bar

Max. Punching Force: 40 Ton

Motor: 230 Volt / 50Hz - 1400 Watt Electric Motor

Weight: 37Kgs


Edilgrappa PZ 28 65DE Hole Puncher.pdf Edilgrappa PZ 28 65DE Hole Puncher.pdf
Size : 1058.28 Kb
Type : pdf

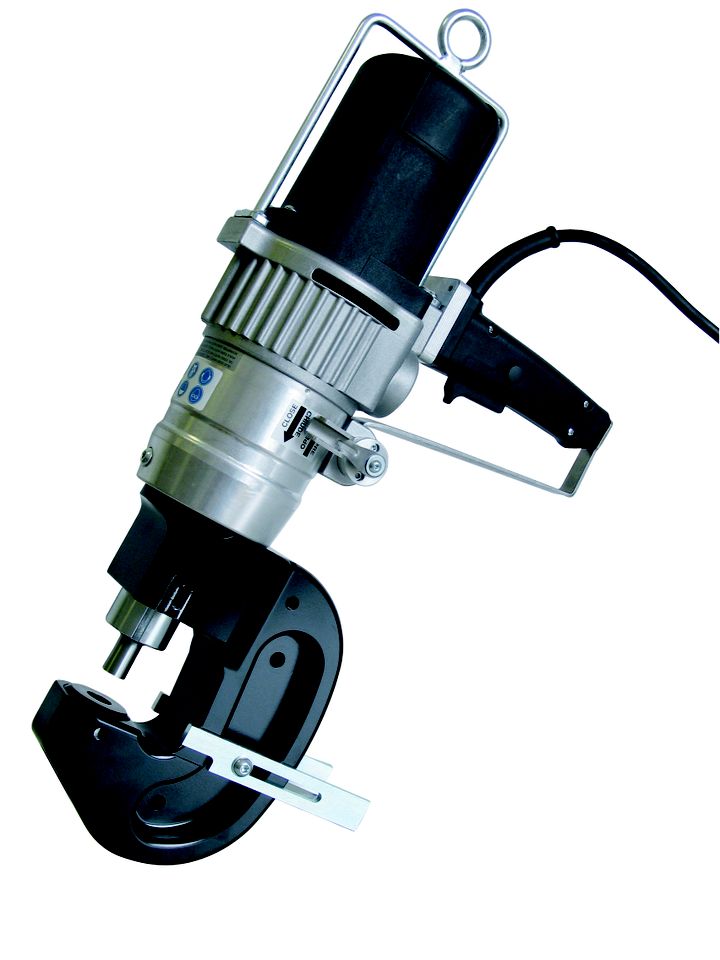

Edilgrappa PZN 28DE Electric Hole Puncher

Max. Punching Capacity: 10mm

Max. Hole Size: 30mm Diameter

Max. Hydraulic Pressure: 550 Bar

Max. Punching Force: 28 Ton

Motor: 230Volt/50Hz Electric Motor

Weight: 25.4kgs


Edilgrappa PZN Hole Puncher.pdf Edilgrappa PZN Hole Puncher.pdf
Size : 966.169 Kb
Type : pdf
