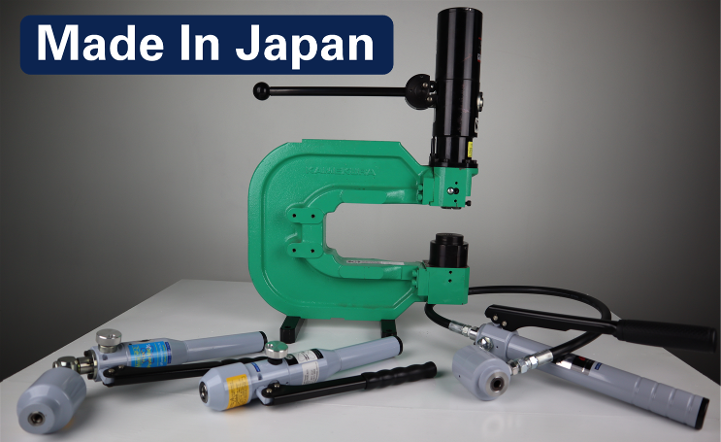

precision made hole punching range...

Kamekura Seiki Co. Ltd (Japan) are the manufacturers of precision hydraulic components and equipment offering a wide range of hydraulic punching equipment from hand operated models to production models. Kamekura hydraulic hole punching equipment is extensively used throughout Australia in many small to large manufacturing companies.

We offer an extensive range of punch and dies. Cutting dies of all Kamekura manufactured products are made in Japan and are designed to the highest quality against wear and tear for long life under normal working conditions.

Round punch and die sets are fully machined from the highest quality tool steel (ISO) with 8 cutting sides and are hardened to 55 rockwell. Square punch and die sets are manufactured from the highest quality tool steel (ISO) by EDM machine centre and are also hardened to 55 rockwell.

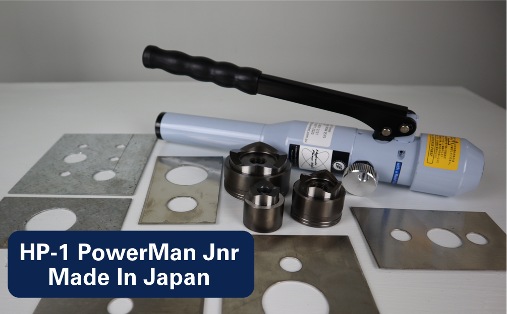

HP-1 PowerMan Jnr Hole Puncher

Features;

  • Max. Punching Capacity: 1.6mm Stainless Steel, 2.4mm Mild Steel & 3.0mm Aluminium Sheet
  • Max. Punching Force: 4 Ton
  • Weight: 2.4Kgs
  • Punch & Die Set Sizes: 10mm to 80mm (Round), 20mm to 50mm (Square)

HP-1 Kit No. 1

  • 1 x HP-1 PowerMan Jnr Hydraulic Puncher Body
  • 5 x Round Punch & Die Sets; 11, 16, 20, 25 & 32mm
  • 3 x Piston Shafts; M6, M10 & M14
  • 1 x Plastic Carry Case

HP-1 Kit No. 2

  • 1 x HP-1 PowerMan Jnr Hydraulic Puncher Body
  • 7 x Round Punch & Die Sets; 16, 20, 22.5 25, 32, 40 & 50mm
  • 2 x Piston Shafts; M10 & M14
  • 1 x Plastic Carry Case

HP-1 Kit No. 3

  • 1 x HP-1 PowerMan Jnr Hydraulic Puncher Body
  • 4 x Round Punch & Die Sets; 20, 22.5, 25 & 30mm
  • 1 x Piston Shaft; M10
  • 1 x Plastic Carry Case

HP-1 Kit No. 4

  • 1 x HP-1 PowerMan Jnr Hydraulic Hole Punch Body
  • 3 x Round Punch & Die Sets; 25, 35 (M10 Thread) & 41mm
  • 2 x Piston Shaftsl M10 & M14
  • 1 x Plastic Carry Case
HP-1 PowerMan Jnr Info Sheet 2020.pdf HP-1 PowerMan Jnr Info Sheet 2020.pdf
Size : 587.946 Kb
Type : pdf

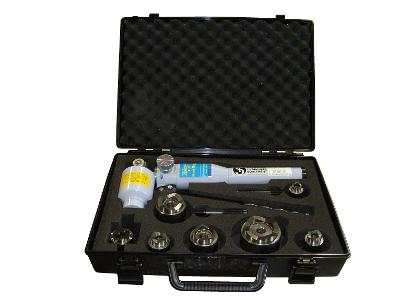

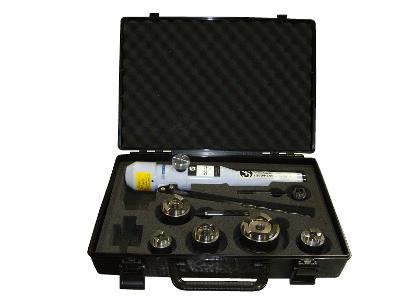

HP-1 Hydraulic Hole Punching Kit No. 2

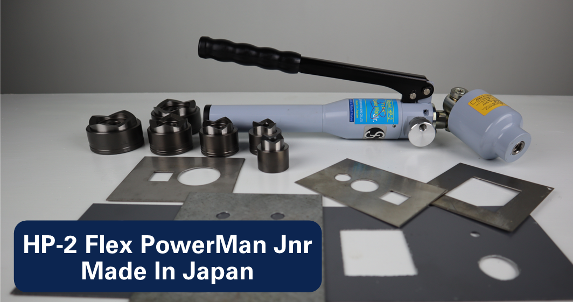

HP-2 Flexi-Head Hole Puncher

Features;

  • Max. Punching Capacity: 1.6mm Stainless Steel, 2.4mm Mild Steel & 3.0mm Aluminium Sheet
  • Max. Punching Force: 4 Ton
  • Weight: 2.5Kgs
  • Punch & Die Set Sizes: 10mm to 80mm (Round), 20mm to 50mm (Square)

HP-2 Kit No. 1

  • 1 x HP-2 Flex PowerMan Jnr Hydraulic Puncher Body
  • 5 x Round Punch & Die Sets; 11, 16, 20, 25 & 30mm
  • 2 x Piston Shafts; M6 & M10
  • 1 x EKX-10 Notching Punch & Die; 10 x 4mm
  • 1 x Plastic Carry Case

HP-2 Kit No. 2

  • 1 x HP-2 Flex PowerMan Jnr Hydraulic Puncher Body
  • 7 x Round Punch & Die Sets; 16, 20, 22.5, 25, 32, 40 & 50mm
  • 2 x Piston Shafts: M10 & M14
  • 1 x Plastic Carry Case

HP-2 Kit No. 3

  • 1 x HP-2 Flex PowerMan Jnr Hydraulic Puncher Body
  • 6 x Round Punch & Die Sets; 11, 16, 20, 22.5, 25 & 30mm
  • 2 x Piston Shafts; M6 & M10
  • 1 x Plastic Carry Case
HP-2 Flex Hole Puncher Info Sheet 2020.pdf HP-2 Flex Hole Puncher Info Sheet 2020.pdf
Size : 535.788 Kb
Type : pdf

HP-2 Hydraulic Hole Punching Kit No. 2

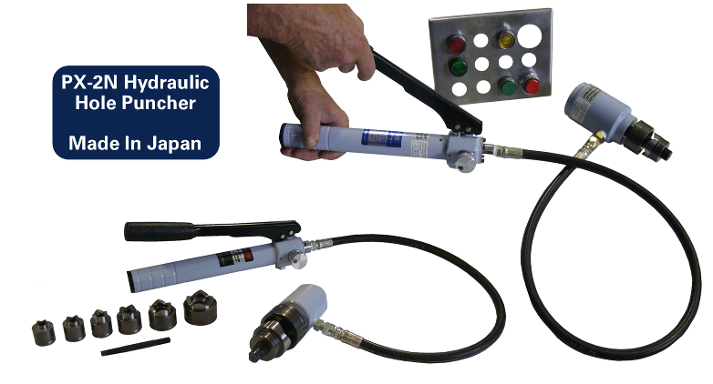

PX-2N Hydraulic Hole Puncher

Features;

  • Max. Punching Capacity: 2.0mm Stainless Steel & 3.2mm Mild Steel
  • Max. Punching Force: 5.5 Ton
  • Weight: 3.5Kgs
  • Punch & Die Set Sizes: 15.2mm to 120mm (Round), 20mm to 50mm (Square)
  • Features: 2-Speed Hydraulic Pump

PX-2N Kit No. 1

  • 1 x PX-2 Flexible Hydraulic Puncher Body
  • 6 x Round Punch & Die Sets; 17.2, 20.2, 26, 32.2, 40 & 50.8mm
  • 2 x Piston Shafts; PXM 3/8 x 3/8, PXM 3/8 x 3/4
  • 1 x Heavy Duty Steel Carry Case

PX-2N Kit No. 2

  • 1 x PX-2 Flexible Hydraulic Puncher Body
  • 8 x Round Punch & Die Sets; 17.2, 20.2 26, 32.2, 40, 50.8, 64.5 & 76.2mm
  • 2 x Piston Shafts; PXM 3/8 x 3/8, PXM 3/8 x 3/4
  • 1 x Heavy Duty Steel Carry Case

PX-2N Kit No. 3

  • 1 x PX-2 Flexible Hydraulic Puncher Body
  • 7 x Round Punch & Die Sets; 16.3, 20.2, 22.5, 25, 32.2, 40 & 50mm
  • 2 x Piston Shafts; PXM 3/8 x 3/8, PXM 3/8 x 3/4
  • 1 x Heavy Duty Steel Carry Case
PX-2N Hole Puncher Info Sheet 2020.pdf PX-2N Hole Puncher Info Sheet 2020.pdf
Size : 569.457 Kb
Type : pdf

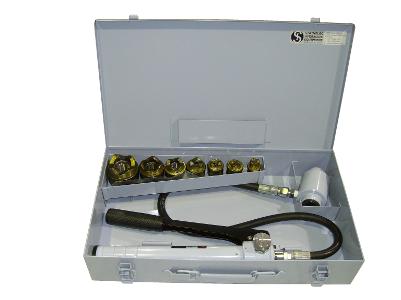

PX-2N Hydraulic Hole Punching Kit No. 3 Complete with Steel Carry Case

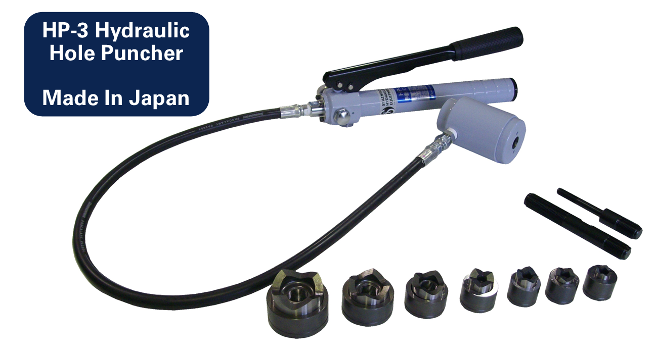

HP-3 Hydraulic Hole Puncher

Features;

  • Max. Punching Capacity: 2.4mm Stainless Steel, 3.2mm Mild Steel & 6.0mm Aluminium Plate
  • Max. Punching Force: 10 Ton
  • Weight: 4.5Kgs
  • Punch & Die Set Sizes: 15.2mm to 120mm (Round), 20mm to 50mm (Square)

HP-3 Kit No. 1

  • 1 x HP-3 Flexible Hydraulic Puncher Body
  • 6 x Round Punch & Die Sets; 17.2, 20.2, 26, 32.2, 40 & 50.8mm
  • 2 x Piston Shafts; HP 3/8 x 3/4, HP 3/4 x 3/4
  • 1 x Spacer
  • 1 x Heavy Duty Steel Carry Case

HP-3 Kit No. 2

  • 1 x HP-3 Flexible Hydraulic Puncher Body
  • 8 x Round Punch & Die Sets; 17.2, 20.2, 26, 32.2, 40, 50.8, 64.5 & 76.2mm
  • 2 x Piston Shafts; HP 3/8 x 3/4, HP 3/4 x 3/4
  • 1 x Spacer
  • 1 x Heavy Duty Steel Carry Case

HP-3 Kit No. 3

  • 1 x HP-3 Flexible Hydraulic Puncher Body
  • 7 x Round Punch & Die Sets; 16.3, 20.2, 22.5, 25, 32.2, 40 & 50mm
  • 2 x Piston Shafts; HP 3/8 x 3/4, HP 3/4 x 3/4
  • 1 x Spacer
  • 1 x Heavy Duty Steel Carry Case
HP-3 Hole Puncher Info Sheet 2020.pdf HP-3 Hole Puncher Info Sheet 2020.pdf
Size : 335.373 Kb
Type : pdf





HP-3 Hydraulic Hole Punching Kit No. 3

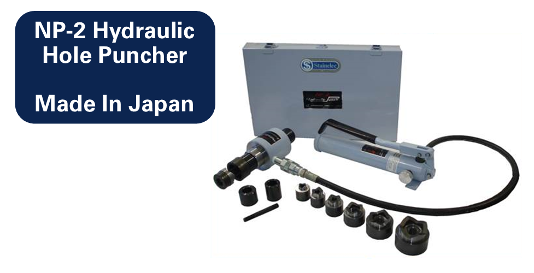

NP-2 Hydraulic Hole Puncher

Features;

  • Max. Punching Capacity: 3mm Stainless Steel & 3.2mm Mild Steel
  • Max. Punching Force: 15 Ton
  • Weight: 6.6Kgs
  • Punch & Die Set Sizes: 15.2mm to 120mm (Round), 20mm to 50mm (Square)

NP-2 Kit No. 1

  • 1 x NP-2 Flexible Hydraulic Puncher body
  • 6 x Round Punch & Die Sets; 17.2, 20.2, 26, 32.2, 40 & 50.8mm
  • 2 x Piston Shafts; NPM 3/4 x 3/4, NPM 3/8 x 3/8
  • 1 x Spacer Set
  • 1 x Heavy Steel Carry Case

NP-2 Kit No. 2

  • 1 x NP-2 Flexible Hydraulic Puncher Body
  • 8 x Round punch & Die Sets; 17.2, 20.2, 26, 32.2, 40, 50.8, 64.5 & 76.2mm
  • 2 x Piston Shafts; NPM 3/4 x 3/4, NPM 3/8 x 3/8
  • 1 x Spacer Set
  • 1 x Heavy Duty Steel Carry Case

NP-2 Kit No. 3

  • 1 x NP-2 Flexible Hydraulic Puncher Body
  • 7 x Round Punch & Die Sets; 16.3, 20.2, 22.5, 25, 32.2, 40 & 50mm
  • 2 x Piston Shafts; NPM 3/4 x 3/4, NPM 3/8 x 3/8
  • 1 x Spacer Set
  • 1 x Heavy Duty Steel Carry Case

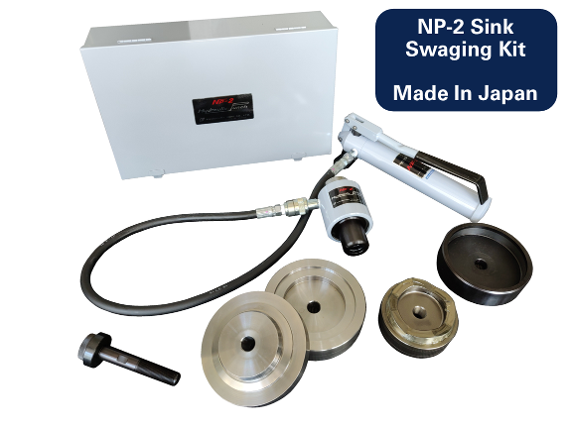

NP-2 Kit No. 4 (90mm Sink Swaging Kit)

  • NP-2 Flexible Hose Hydraulic Hole Punch Body
  • 1 x 92mm Round Punch & Die Set
  • 1 x 90mm Swaging Die Set
  • 1 x NPM 3/4 x 3/4 Piston Shaft
  • 1 x Dressing Tool Die 120mm Diameter
  • 1 x Heavy Duty Steel Carry Case

NP-2 Kit No. 5 (90mm & 125mm Sink Swaging Kit)

  • 1 x NP-2 Flexible Hose Hydraulic Hole Punch Body
  • 1 x 92mm Round Punch & Die Set
  • 1 x 90mm Swaging Die Set
  • 1 x NP-2  3/4 x 3/4 Piston Shaft
  • 1 x Dressing Tool Die 120mm Diameter
  • 1 x 125mm Round Punch & Die Set
  • 1 x 158mm Swaging Die
  • 1 x NPM 25mm Piston Shaft & Nut
  • 3 x Heavy Duty Carry Cases
NP-2 Hole Puncher Info Sheet 2020.pdf NP-2 Hole Puncher Info Sheet 2020.pdf
Size : 510.241 Kb
Type : pdf
NP-2 Sink Swaging Info Sheet 2020.pdf NP-2 Sink Swaging Info Sheet 2020.pdf
Size : 330.118 Kb
Type : pdf

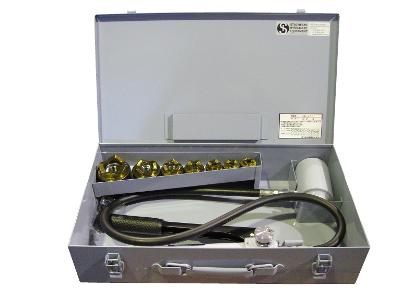

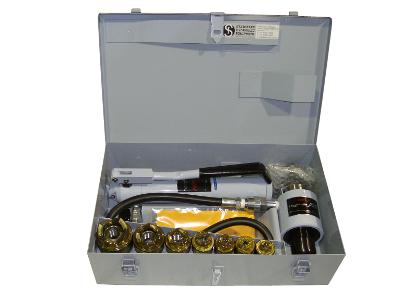

NP-2 Hydraulic Hole Punching Kit No. 3 Complete with Steel Carry Case

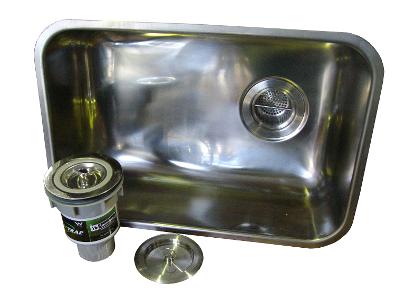

NP-2 Sink Swaging Kits are Available per Customers Request - Ideal for Scrap Trap & InSinkErator® Installations

Stainelec HP-3 FPA-0.5 Hydraulic Foot Pump Puncher

Features;

  • Max. Punching Capacity: 2.4mm Stainless Steel, 3.2mm Mild Steel & 6.0mm Aluminium Plate
  • Reliable 2-Speed Hydraulic Foot Pump
  • Lightweight & portable design, ideal for on-site & workshop applications

The HP-3 FPA-0.5 hydraulic foot pump puncher is designed for punching square & round holes in sheetmetal for on-site and factory based applications.

This unit has been used rigorously by independent contractors and high output construction companies around the world.

This manual hydraulic punching tool boasts a lightweight and compact design with user friendly pressure & relief foot pedal controls.

Stainelec HP-3 FPA-0.5 Foot Pump Puncher.pdf Stainelec HP-3 FPA-0.5 Foot Pump Puncher.pdf
Size : 508.435 Kb
Type : pdf



Powered by a Reliable 2-Speed Hydraulic Foot Pump

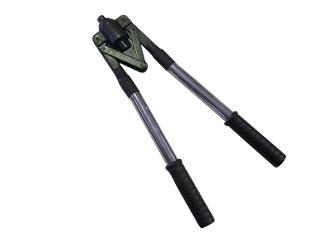

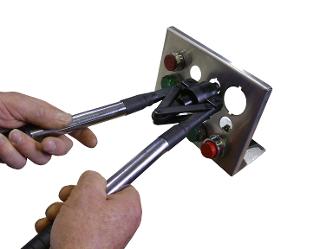

Stainelec Manual Notching Pliers

Key notch for 22.5mm & 30mm dia. electrical push button control holes.

  • Ideally Used for Electrical Switchboard & Enclosure Manufacturing Applications
  • Easy and quick punching of notches in sheet metal up to 3mm thickness
  • No time-consuming filing of the notches for twist guards of push buttons, switches and instruments
  • Can notch 3.2mm or 4.8mm (by turning the punching head 180 degrees)
  • Long tool-life due to both punch & die are made of hardened tool steel
  • Easy punching due to high lever transmission; plastic laminated handles
  • Boasts a light weight of 1.3kgs
Stainelec Notching Pliers Info Sheet.pdf Stainelec Notching Pliers Info Sheet.pdf
Size : 580.871 Kb
Type : pdf

Ideally Used for Switchboard Manufacturing Applications

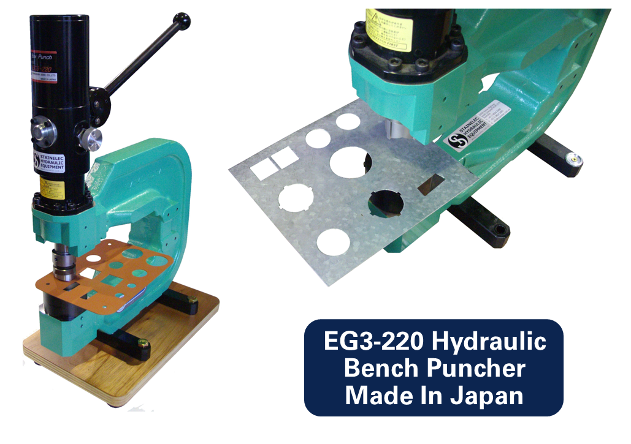

EG3-220 Hydraulic Bench Puncher

EG3-220 Hydraulic Bench Puncher Boasts a Slim and Compact Design for Punching Holes in Maximum 2mm Stainless & 3.2mm Mild Steel Material with Ease, Perfect for Sheetmetal Workshops.

Features;

  • Max. Punching Capacity: 2.0mm Stainless Steel 3.2mm Mild Steel
  • Max. Punching Force: 4.5 Ton
  • Punch & Die Set Sizes: 4mm to 80mm (Round), 20.2mm to 26mm (Square)
  • Max. Throat Depth: 220mm
  • Special Four Point Notching Punch & Die Sets are also Available per Customers Request
EG3-220 Bench Hole Puncher Info Sheet 2020.pdf EG3-220 Bench Hole Puncher Info Sheet 2020.pdf
Size : 1137.021 Kb
Type : pdf

EG3-400 Hydraulic Bench Puncher

Features;

  • Max. Punching Capacity: 2.0mm Stainless Steel & 3.2mm Mild Steel
  • Max. Punching Force: 4.5 Ton
  • Punch & Die Sets: 4mm to 80mm (Round), 20.2mm to 26mm (Square)
  • Max. Throat Depth: 400mm
  • Japanese Hydraulics & Australian Made Frame
  • Special Four Point Notching Punch & Die Sets are also Available per Customers Request
EG3-400 Bench Hole Puncher Info Sheet 2020.pdf EG3-400 Bench Hole Puncher Info Sheet 2020.pdf
Size : 1195.472 Kb
Type : pdf

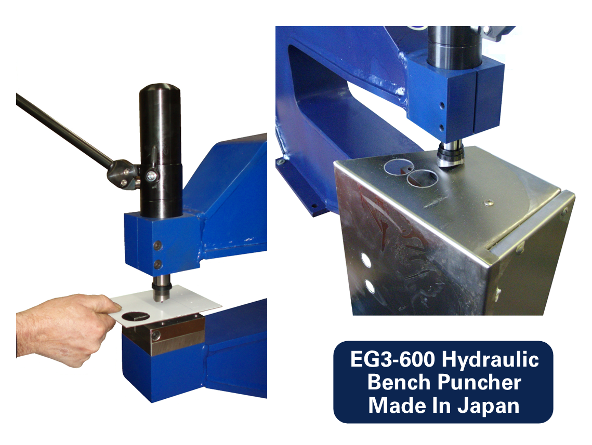

EG3-600 Hydraulic Bench Puncher

Features;

  • Max. Punching Capacity: 2.0mm Stainless Steel & 3.2mm Mild Steel
  • Max. Punching Force: 4.5Ton
  • Punch & Die Sets: 4mm to 80mm (Round), 20.2mm to 26mm (Square)
  • Max. Throat Depth: 600mm
  • Japanese Hydraulics & Australian Made Frame
  • Special Four Point Notching Punch & Die Sets are also Available per Customers Request
EG3-600 Bench Hole Puncher Info Sheet 2020.pdf EG3-600 Bench Hole Puncher Info Sheet 2020.pdf
Size : 1290.305 Kb
Type : pdf

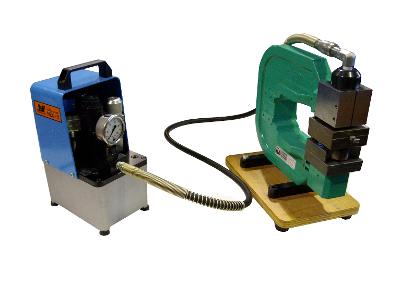

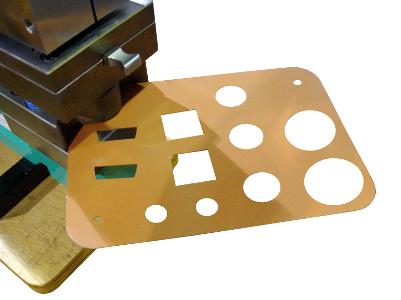

EG3 Radius Corner Bench Puncher

Features;

  • Max. Punching Force: 4 Ton
  • Max. Output Pressure: 350 Bar
  • Max. Throat Depth: 220mm
  • Max. Material Thickness: 2mm Mild Steel & Aluminium
  • Ideally designed for special engineering projects & sign makers
Kamekura EG3-220S Radius Puncher Info.pdf Kamekura EG3-220S Radius Puncher Info.pdf
Size : 767.261 Kb
Type : pdf

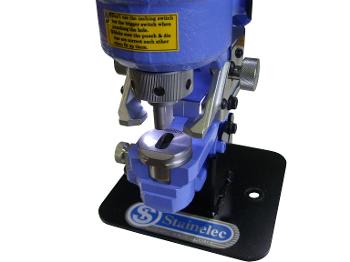

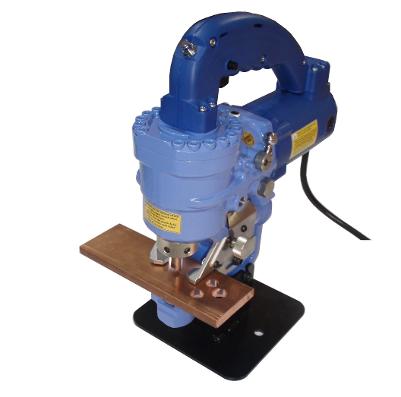

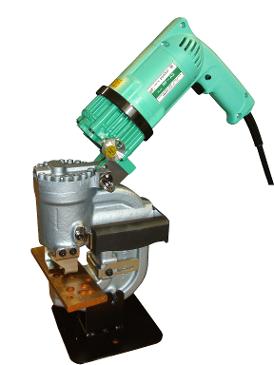

RW-M2A Electric Hydraulic Hole Puncher

Features;

  • Max. Punching Capacity: 6mm Stainless Steel, 9mm Mild Steel & 10mm Copper Bar
  • Max. Punching Force: 20 Ton
  • Motor: 230 Volt Double Insulated Electric Motor
  • Weight: 10.5Kgs
  • Punch & Die Set Sizes: 8mm to 20mm Diameter (Oval sizes are available per customers request)
  • Double acting hydraulic auto return, can be detached from stand for remote applications, 0.1mm Inching Switch.
RW-M2A Specification Sheet.pdf RW-M2A Specification Sheet.pdf
Size : 3133.667 Kb
Type : pdf

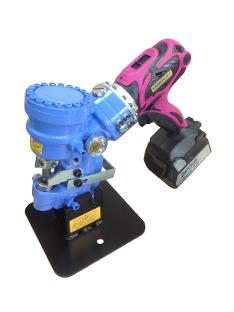

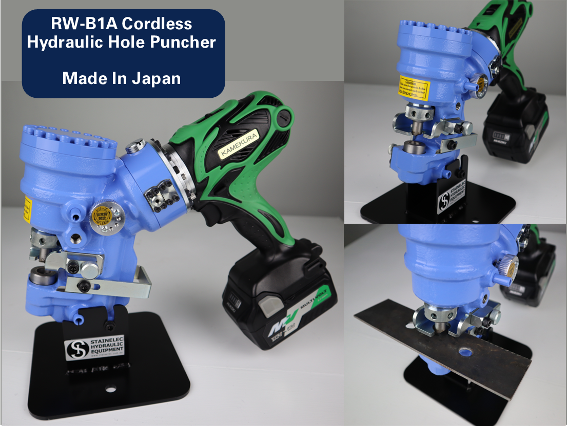

Rw-B1A Cordless Hydraulic Hole Puncher

Features;

  • Hydraulics: Double Acting with Auto Return
  • Maximum Punching Capacity: (Refer to Punching Table on PDF Spec Sheet Below)
  • Maximum Punching Force: 11 Ton
  • Motor: Hitachi DC18V Li-Ion Battery & Motor
  • Weight: 7.4 Kgs
  • Dimensions: 308 x 120 x 288mm
  • Punch & Die Set Sizes: 6mm to 15mm Diameter (Oval sizes are available per customers request)

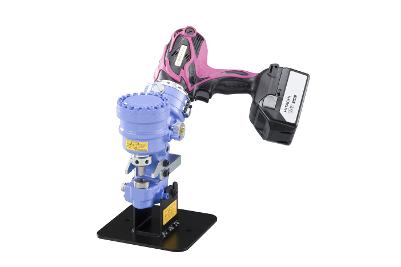

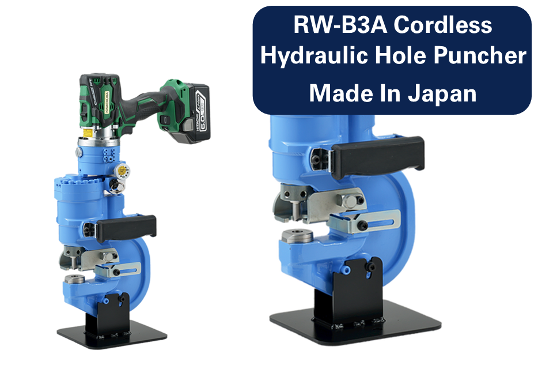

Rw-B3A Cordless Hydraulic Hole Puncher

Features;

  • Hydraulics: Double Acting with Auto Return
  • Maximum Punching Capacity: 10mm Mild Steel Plate
  • Maximum Punching Force: 20 Ton
  • Motor: Hitachi DC18V Li-Ion Battery & DC Brushless Motor
  • Weight: 13 Kgs
  • Dimensions: 443 x 128 x 286 mm

RW-M1B Cordless Hydraulic Hole Puncher

Features;

  • Hydraulics: Double Acting with Auto Return
  • Max. Punching Capacity: 7.5mm Mild Steel, 5mm Stainless Steel & 8mm Copper Bar
  • Motor: 18 Volt Li-Ion Hitachi Battery & Motor
  • Weight: 7.2kgs
  • Max. Punching Size: 16mm Diameter
Kamekura RW-M1B Cordless Hole Puncher Info.pdf Kamekura RW-M1B Cordless Hole Puncher Info.pdf
Size : 687.333 Kb
Type : pdf

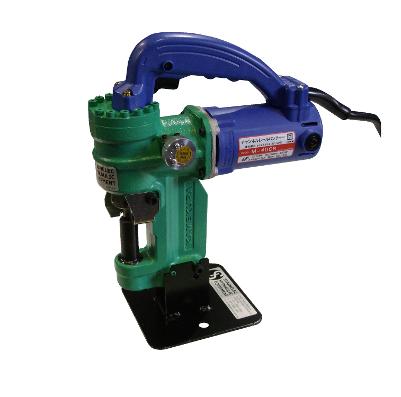

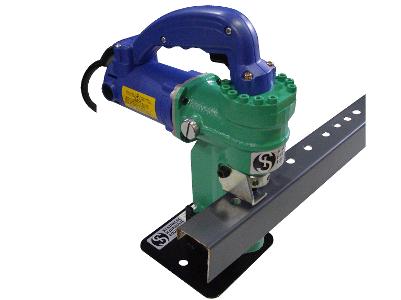

M-40CR Electric Hydraulic Strut Puncher

Features;

  • Hydraulics: Double Acting with Auto Return
  • Max. Punching Capacity: 3.2mm Mild Steel
  • Max. Output Pressure: 700 Bar
  • Motor: 230 Volt Double Insulated Electric Motor
  • Weight: 5Kgs
  • Punch & Die Set Sizes: 9mm, 10.5mm, 11mm & 13.5mm Diameter.
Kamekura M-40CR Hole Puncher Info.pdf Kamekura M-40CR Hole Puncher Info.pdf
Size : 582.83 Kb
Type : pdf

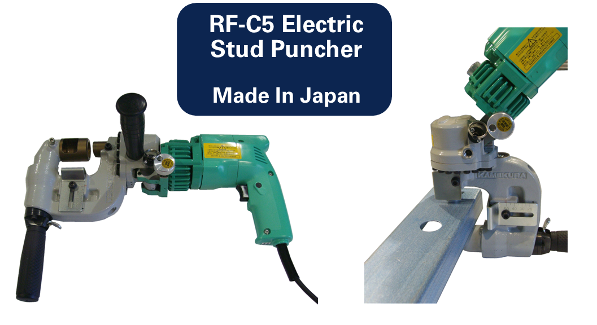

RF-C5 Electric Hydraulic Stud Puncher

Features;

  • Max. Punching Thickness: 3.2mm Mild Steel
  • Max. Punching Force: 10 Ton Output
  • Motor: 240Volt Double Insulated Electric Motor
  • Weight: 6.5Kgs
  • Punch & Die Set Sizes: 25.4mm, 28mm, 32.2mm & 34.1mm Diameter

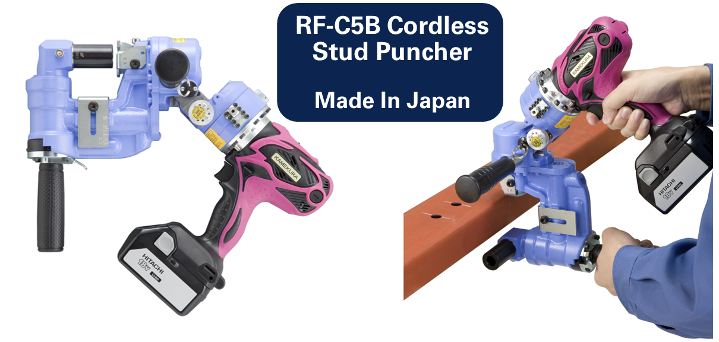

RF-C5B Cordless Hydraulic Stud Puncher

Features;

  • Max. Punching Thickness: 3mm Mild Steel
  • Max. Punching Force: 9.5 Ton
  • Motor: 18 Volt Hitachi Li-Ion Battery & Motor
  • Weight: 6.4kgs
  • Punch & Die Set Sizes: 25.4mm, 28mm, 32.2mm & 34.1mm Diameter

RF-A3 Electric Hydraulic Hole Puncher

Features;

  • Max. Punching Thickness: 10mm Mild Steel, 6mm Stainless Steel & 12mm Copper Plate
  • Max. Punching Capacity: 6mm to 20mm Diameter
  • Max. Punching Force: 20 Ton
  • Motor: 240 Volt Double Insulated Motor
  • Weight: 15kgs
Kamekura RF-A3 Hole Puncher Info.pdf Kamekura RF-A3 Hole Puncher Info.pdf
Size : 567.461 Kb
Type : pdf





© Copyright 2020 - Stainelec Hydraulic Equipment

All Logos & Images Remain the Property of Their Respective Owners
