Rebar cutters made & engineered for the modern worksite...

Stainelec Hydraulic Equipment are the Australian Agents for Edilgrappa. Edilgrappa adopts flexibility and innovation as a priority in every project which they are focused on. For the toughest jobs in the worst conditions, you can depend on Edilgrappas reliable range of hydraulic cordless and electric rebar cutters.

Since 1976 Edilgrappa has been developing and manufacturing high quality hydraulic building, industrial and rescue tools & machinery.

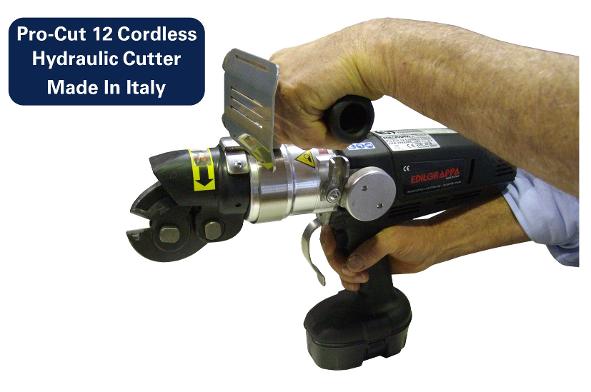

Pro-Cut 12 Cordless Mesh Rebar Cutter

Features;

  • Max. Cutting Capacity: 12mm Diameter
  • Max. Operating Pressure: 280 Bar
  • Max. Cutting Force: 12.2 Ton
  • Motor: DeWalt 18 Volt Li-Ion Battery Motor
  • Weight: 6.5kgs
  • Dimensions (L) x (W) x (H): 494 x 184 x 303mm
  • These tools can be utilised in factory & on-site applications for the global construction market.
  • Made In Italy
ProCut 12 Cordless Cutter Info Sheet 2020.pdf ProCut 12 Cordless Cutter Info Sheet 2020.pdf
Size : 754.605 Kb
Type : pdf

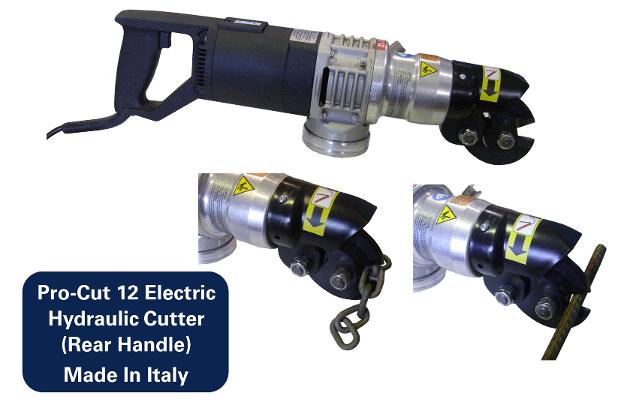

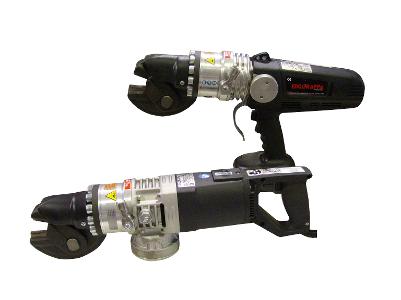

Pro-Cut 12 Mesh Rebar Cutter (Rear Handle)

Features;

  • Max. Cutting Capacity: 12mm Diameter
  • Max. Operating Pressure: 280 Bar
  • Max. Cutting Force: 12.2 Ton
  • Motor: 230Volt/50Hz Electric Motor
  • Weight: 7.5kgs
  • Dimensions (L) x (W) x (H): 514 x 123 x 138mm
  • Made In Italy

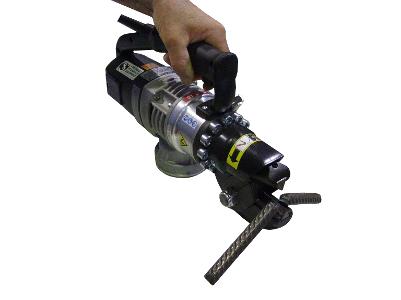

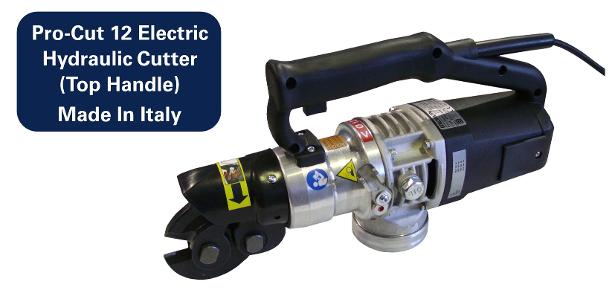

Pro-Cut 12 Mesh Rebar Cutter (Top Handle)

Features;

  • Max. Cutting Capacity: 12mm Diameter
  • Max. Operating Pressure: 280 Bar
  • Max. Cutting Force: 12.2 Ton
  • Motor: 230Volt/50Hz Electric Motor
  • Weight: 7.5kgs
  • Dimensions (L) x (W) x (H): 411 x 123 x 211mm
  • Made In Italy

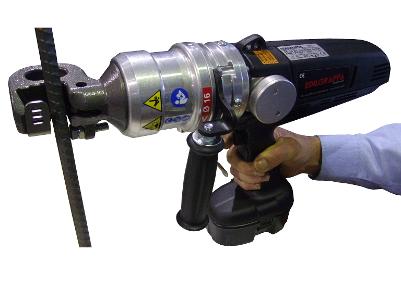

MU16 Cordless Rebar Cutter

Features;

  • Max. Cutting Capacity: 16mm Diameter
  • Max. Operating Pressure: 570 Bar
  • Max. Cutting Force: 17.4 Ton
  • Motor: DeWalt 18 Volt Li-Ion Battery Motor
  • Weight: 9kgs
  • Dimensions (L) x (W) x (H): 486 x 184 x 303mm
  • Made In Italy
MU16 Cordless Cutter Info Sheet 2020.pdf MU16 Cordless Cutter Info Sheet 2020.pdf
Size : 867.439 Kb
Type : pdf

MU16 Rebar Cutter (Rear Handle)

Features;

  • Max. Cutting Capacity: 16mm Diameter
  • Max. Operating Pressure: 560 Bar
  • Max. Cutting Force: 14 Ton
  • Motor: 230 Volt/50Hz Electric Motor
  • Weight: 9.1kgs
  • Dimensions (L) x (W) x (H): 520 x 120 x 130mm
  • Made In Italy
Edilgrappa MU16 Electric Cutter.pdf Edilgrappa MU16 Electric Cutter.pdf
Size : 518.57 Kb
Type : pdf

MU16 Rebar Cutter (Top Handle)

Features;

  • Max. Cutting Capacity: 16mm Diameter
  • Max. Operating Pressure: 560 Bar
  • Max. Cutting Force: 14 Ton
  • Motor: 230Volt/50Hz Electric Motor
  • Weight: 9kgs
  • Dimensions (L) x (W) x (H): 420 x 210 x 110mm
  • Made In Italy
MU16D Electric Rebar Cutter.pdf MU16D Electric Rebar Cutter.pdf
Size : 614.811 Kb
Type : pdf

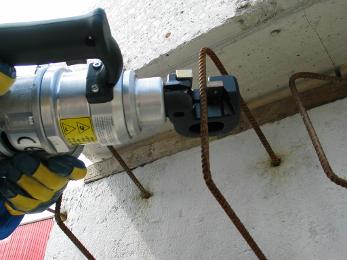

Silvercut 16 Cordless Rebar Cutter

Features;

  • Max. Cutting Capacity: 16mm Diameter
  • Max. Cutting Force: 12 Ton
  • Motor: DeWalt 18 Volt Li-Ion Battery Motor
  • Weight:7.6kgs
  • Dimensions (L) x (W) x (H): 479 x 110 x 264mm
  • Made In Italy
Silvercut 16 Cordless Rebar Cutter.pdf Silvercut 16 Cordless Rebar Cutter.pdf
Size : 675.029 Kb
Type : pdf

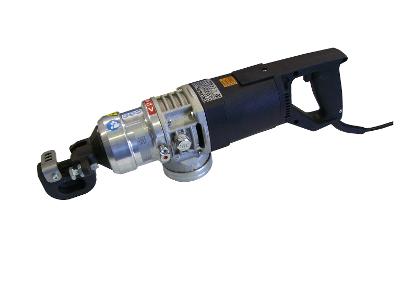

Silvercut 16 Rebar Cutter (Rear Handle)

Features;

  • Max. Cutting Capacity: 16mm Diameter
  • Max. Cutting Force: 11 Ton
  • Motor: 230Volt/50Hz Electric Motor
  • Weight: 7.1kgs
  • Dimensions (L) x (W) x (H): 420 x 215 x 110mm
  • Made In Italy
Edilgrappa Silvercut 16 Rebar Cutter.pdf Edilgrappa Silvercut 16 Rebar Cutter.pdf
Size : 590.214 Kb
Type : pdf

Silvercut 16 Rebar Cutter (Top Handle)

Features;

  • Max. Cutting Capacity: 16mm Diameter
  • Max. Cutting Force: 11 Ton
  • Motor: 230Volt/50Hz Electric Motor
  • Weight: 7.1kgs
  • Dimensions (L) x (W) x (H): 420 x 240 x 110mm
  • Made In Italy

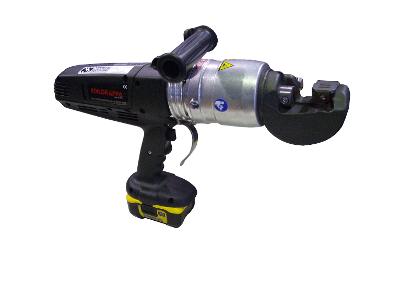

Silvercut 20 Cordless Rebar Cutter

Features;

  • Max. Cutting Capacity: 20mm Diameter
  • Max. Operating Pressure: 550 Bar
  • Max. Cutting Force: 19 Ton
  • Motor: DeWalt 18 Volt Li-Ion Battery Motor
  • Weight: 9.4kgs
  • Dimensions (L) x (W) x (H): 500 x 320 x 100mm
  • Made In Italy
Edilgrappa Silvercut 20 Cordless.pdf Edilgrappa Silvercut 20 Cordless.pdf
Size : 550.997 Kb
Type : pdf

Silvercut 20 Rebar Cutter (Rear Handle)

Features;

  • Max. Cutting Capacity: 20mm Diameter
  • Max. Cutting Force: 14 Ton
  • Motor: 230 Volt / 50Hz Electric Motor
  • Weight: 10kgs
  • Dimensions (L) x (W) x (H): 530 x 140 x 120mm
  • Made In Italy

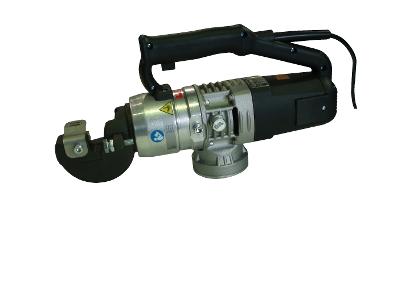

Silvercut 20 Rebar Cutter (Top Handle)

Features;

  • Max. Cutting Capacity: 20mm Diameter
  • Max. Cutting Force: 14 Ton
  • Motor: 230 Volt / 50Hz Electric Motor
  • Weight: 10kgs
  • Dimensions (L) x (W) x (H): 430 x 230 x 110mm
  • Made In Italy

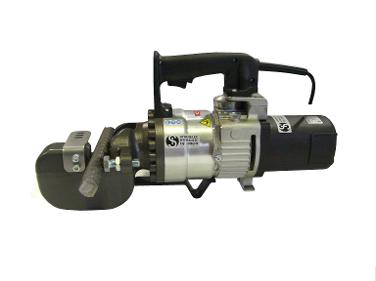

T26 Electric Hydraulic Rebar Cutter

Features;

  • Max. Cutting Capacity: 26mm Diameter
  • Max. Operating Pressure: 580 Bar
  • Max. Cutting Force: 32 Ton
  • Motor: 230 Volt/50Hz Electric Motor
  • Weight: 15.7kgs
  • Dimensions (L) x (W) x (H): 466 x 270 x 160mm
  • Made In Italy
T26 Rebar Cutter Info Sheet 2020.pdf T26 Rebar Cutter Info Sheet 2020.pdf
Size : 657.751 Kb
Type : pdf

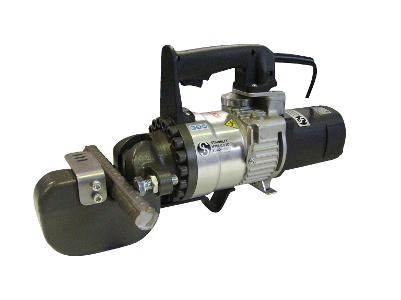

T32N Electric HydraulicRebar Cutter

Features;

  • Max. Cutting Capacity: 32mm Diameter
  • Max. Operating Pressure: 650 Bar
  • Max. Cutting Force: 46 Ton
  • Motor: 230Volt/50Hz Electric Motor
  • Weight: 27kgs
  • Dimensions (L) x (W) x (H): 560 x 335 x 180mm
  • Made In Italy
T32N Rebar Cutter Info Sheet 2020.pdf T32N Rebar Cutter Info Sheet 2020.pdf
Size : 153.93 Kb
Type : pdf

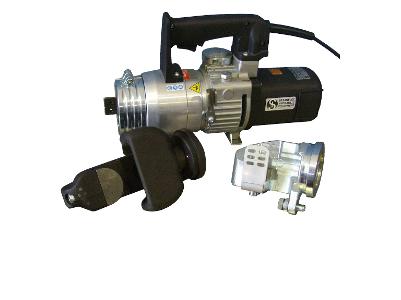

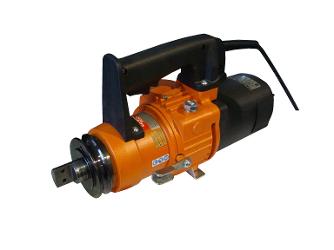

T22 Rebar Cutting Head/MU22N Body

(Features an Interchangeable Head System)

Specifications;

  • Max. Cutting Capacity: 22mm Diameter
  • Max. Operating Pressure: 570 Bar
  • Max. Cutting Force: 25 Ton
  • Motor: 230Volt/50Hz Electric Motor
  • Weight: 3.4kgs (Head), 13.3kgs (Body)
  • Dimensions (L) x (W) x (H): 385 x 240 x 180mm
  • Made In Italy
T22 MU22N Rebar Cutter Info Sheet 2022.pdf T22 MU22N Rebar Cutter Info Sheet 2022.pdf
Size : 167.314 Kb
Type : pdf

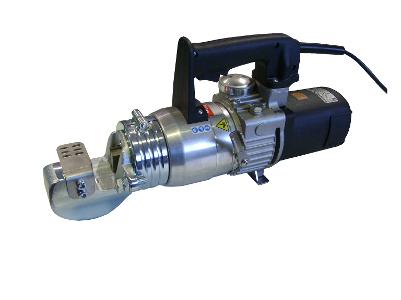

T26 Rebar Cutting Head/MU26N Body

(Features an Interchangeable Head System)

Specifications;

  • Max. Cutting Capacity: 26mm Diameter
  • Max. Operating Pressure: 570 Bar
  • Max. Cutting Force: 25 Ton
  • Motor: 230Volt/50Hz Electric Motor
  • Weight: 4.7kgs (Head), 11.5kgs (Body)
  • Dimensions (L) x (W) x (H): 405 x 250 x 170 mm
  • Made In Italy
T26 - MU26N Cutter Body.pdf T26 - MU26N Cutter Body.pdf
Size : 974.207 Kb
Type : pdf

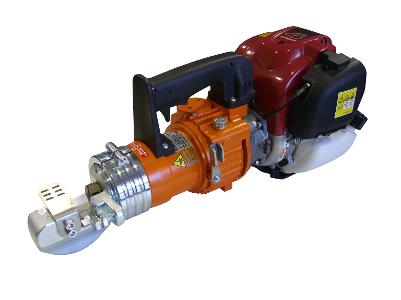

T22 Rebar Cutting Head/TPS 22N Petrol Body

(Features an Interchangeable Head System)

Specifications;

  • Max. Cutting Capacity: 22mm Diameter
  • Max. Operating Pressure: 570 Bar
  • Max. Cutting Force: 25 Ton
  • Motor: 2-Stroke Honda Petrol Motor
  • Weight: 3.4kgs (Head), 15kgs (Petrol Body)
  • Dimensions (L) x (W) x (H): 440 x 285 x 265mm
  • Made In Italy
T22 Cutter - TPS 22N Petrol Motor.pdf T22 Cutter - TPS 22N Petrol Motor.pdf
Size : 641.706 Kb
Type : pdf

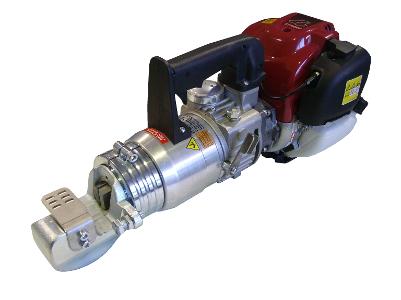

T26 Rebar Cutting Head/TPS 26N Petrol Body

(Features an Interchangeable Head System)

Specifications;

  • Max. Cutting Capacity: 26mm Diameter
  • Max. Operating Pressure: 580 Bar
  • Max. Cutting Force: 32 Ton
  • Motor: 2-Stroke Honda Petrol Motor
  • Weight: 4.7kgs (Head), 15.2kgs (Petrol Body)
  • Dimensions (L) x (W) x (H): 460 x 285 x 265mm
  • Made In Italy
T26 Rebar Cutter - TPS 26N Petrol Body.pdf T26 Rebar Cutter - TPS 26N Petrol Body.pdf
Size : 617.748 Kb
Type : pdf
